Kia Cee'd: Gauges / Speedometer

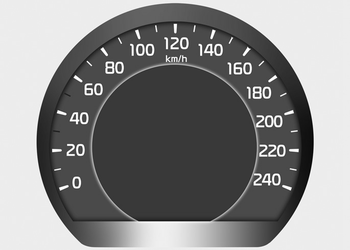

■ Type A

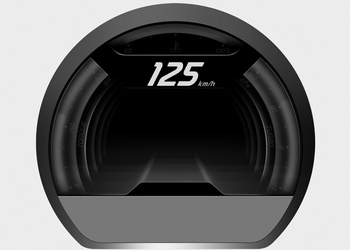

■ Type B • km/h

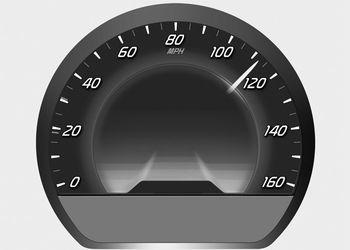

■ Type B • MPH

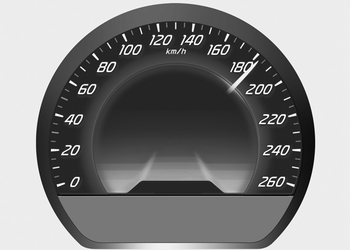

■ Type C • km/h
■ Type C • MPH
The speedometer indicates the vehicle speed.
The speedometer is calibrated in kilometers per hour and/or miles per hour.
Tachometer
The tachometer indicates the engine
speed in revolutions per minute (rpm).
Use the tachometer to select the correct
shift points and to prevent lugging and/or
over-revving the engine.
CAUTIO ...
Fuel gauge
The fuel gauge indicates the approximate
amount of fuel remaining in the fuel
tank.
✽ NOTICE
The fuel tank capacity is given in
chapter 8.
The fuel gauge is supplemented by a
low ...
