Kia Cee'd: Cooling System / Water Temperature Control Assembly Components and components location

Kia Cee'd JD Service Manual / Engine Mechanical System / Cooling System / Water Temperature Control Assembly Components and components location

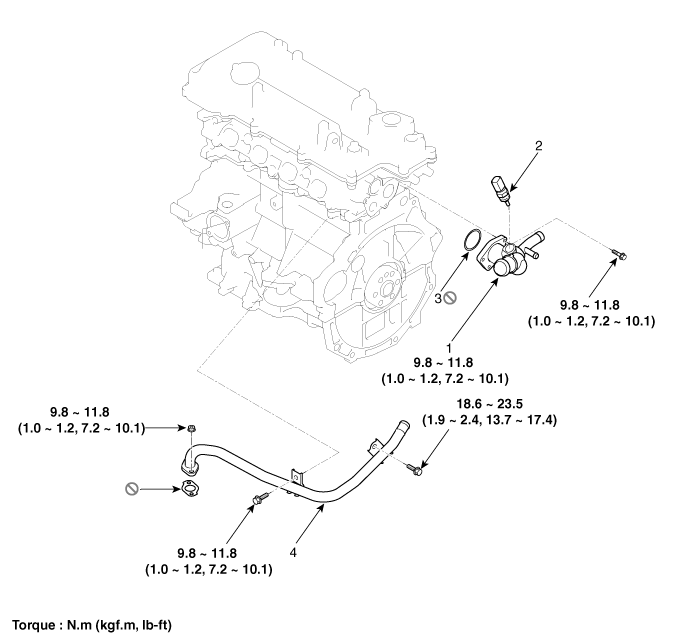

Components

1. Water temperature control assembly
2. Water temperature sensor

3. Gasket
4. Water
5. Bypass hose

Cooling Fan Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the air cleaner assembly. (Refer to Intake and ...

Water Temperature Control Assembly Repair procedures

Removal and Installation 1. Loosen the drain plug, and drain the engine coolant. Remove the radiator cap to drain with speed. 2. Di ...
