| Component Location |

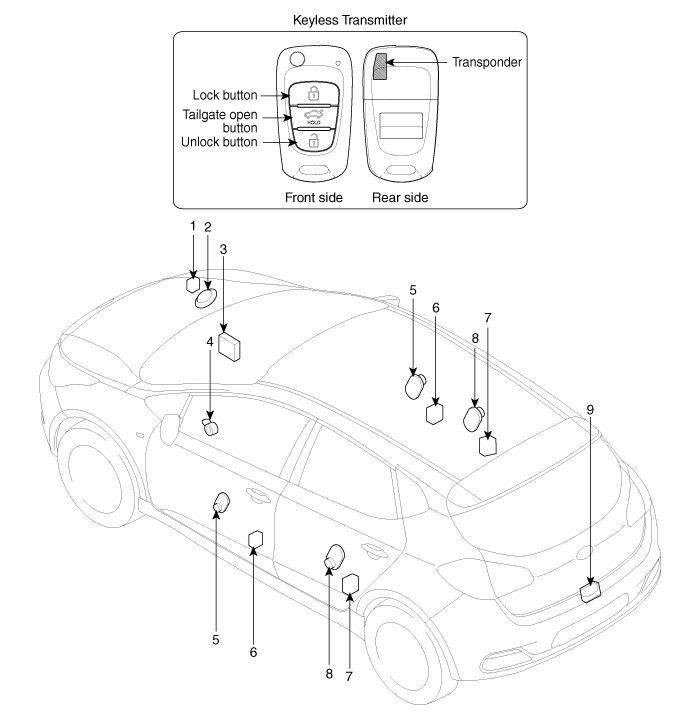

| 1. Hood switch 2. Burglar horn 3. BCM and RF antenna 4. Key warning switch 5. Front door switch |
6. Front door lock actuator &
switch 7. Rear door lock actuator 8. Rear door switch 9. Tailgate open switch |
