Kia Cee'd: Crash Pad / Crash Pad Center Panel Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Center Panel Components and components location

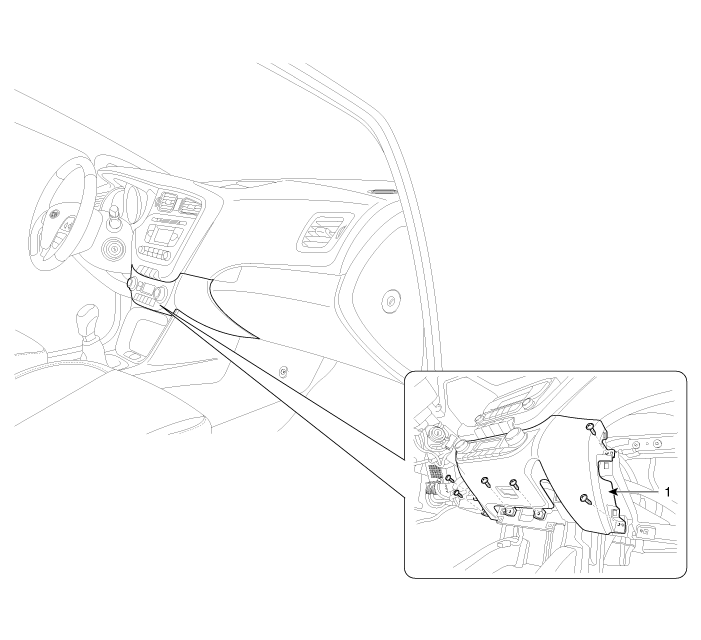

Component Location

1. Crash pad center lower panel
