Kia Cee'd: Instrument cluster (Normal vision) / Trip computer
The trip computer is a microcomputercontrolled driver information system that displays information related to driving when the ignition switch is in the ON position. All stored driving information (except odometer, distance to empty and instant fuel economy) resets if the battery is disconnected.

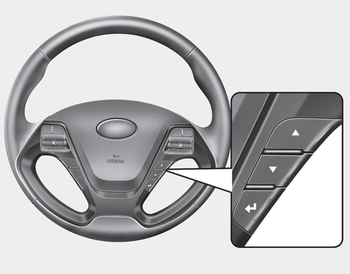

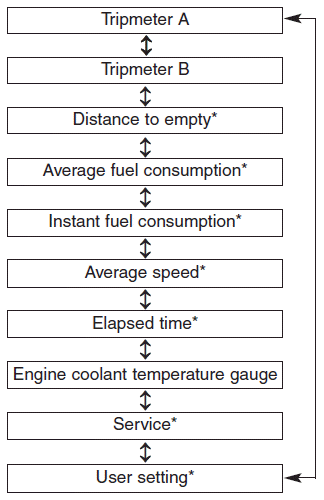

Press the ▲ or ▼ button for less than 1 second to select any mode as follows:
- Tripmeter (km or mi.)
- Distance to empty (km or mi.)
- Average fuel economy (L/100 km or MPG)
- Instant fuel economy (L/100 km or MPG)
- Average speed (km/h or MPH)
- Elapsed time
- Service mode
- User Settings
Odometer (km or mi.)
The odometer indicates the total distance
the vehicle has been driven.
You will also find the odometer useful to
determine when periodic maintenance
should be performed. ...
Tripmeter (km or mi.)
This mode indicates the distance of individual
trips selected since the last tripmeter
reset.
The meter's working range is from 0.0 to
9999.9 km (0.0 to 9999.9 miles).
Pressing the button f ...
