Kia Cee'd: Audio / Audio Remote Control Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Audio / Audio Remote Control Schematic diagrams

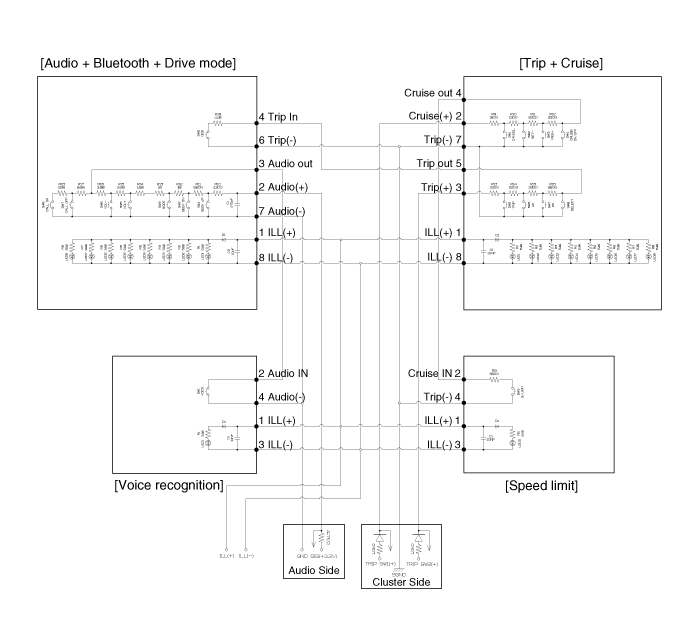

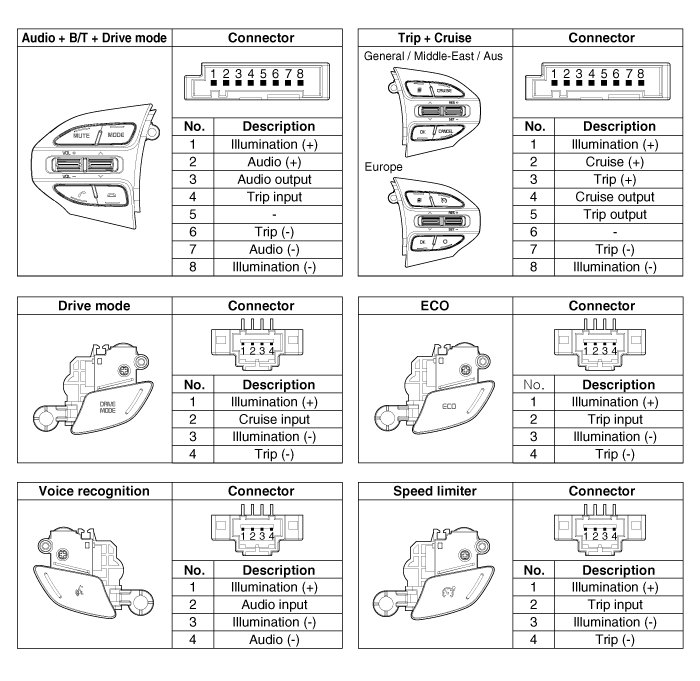

Circuit Diagram

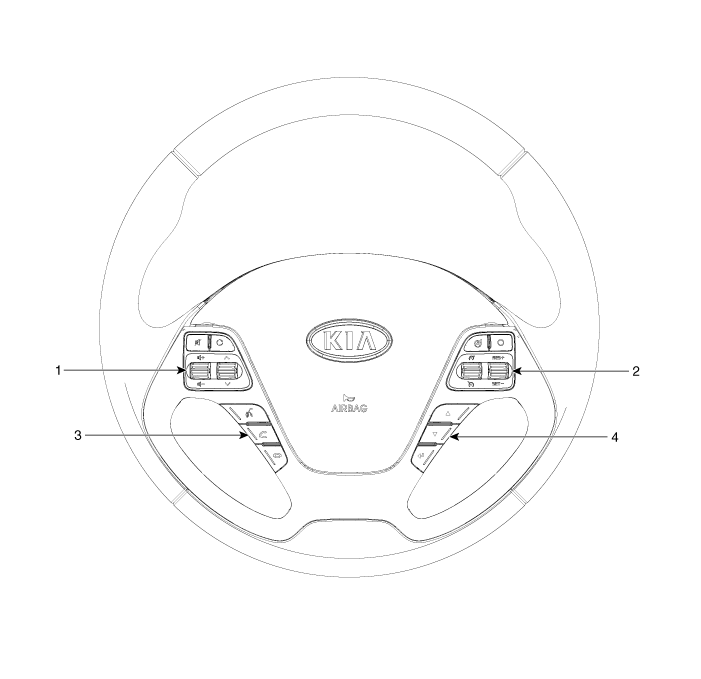

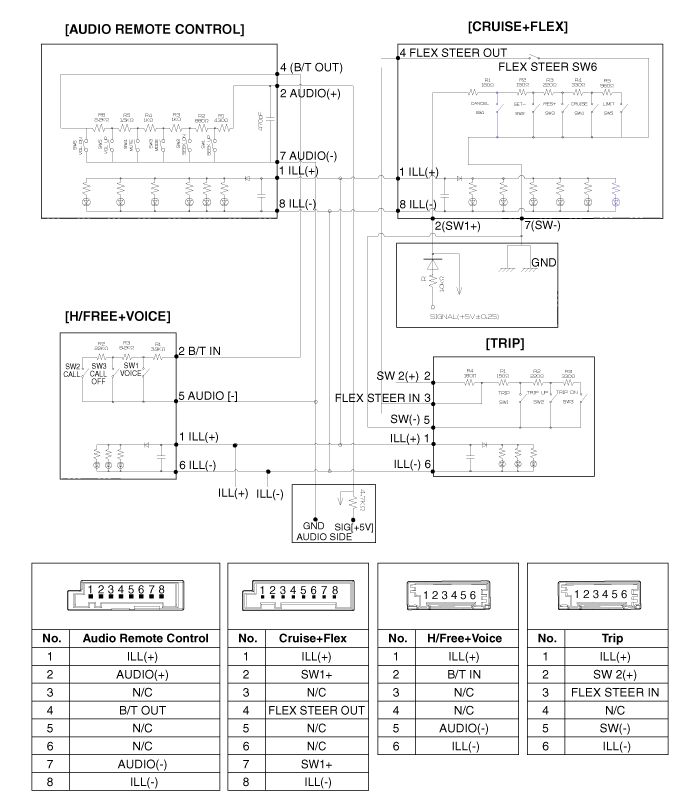

Type A


1. Remote control switch(LH: Audio)
2. Remote control switch(RH: Cruise+Flex)
3. Bluetooth hands free switch
4. Trip switch

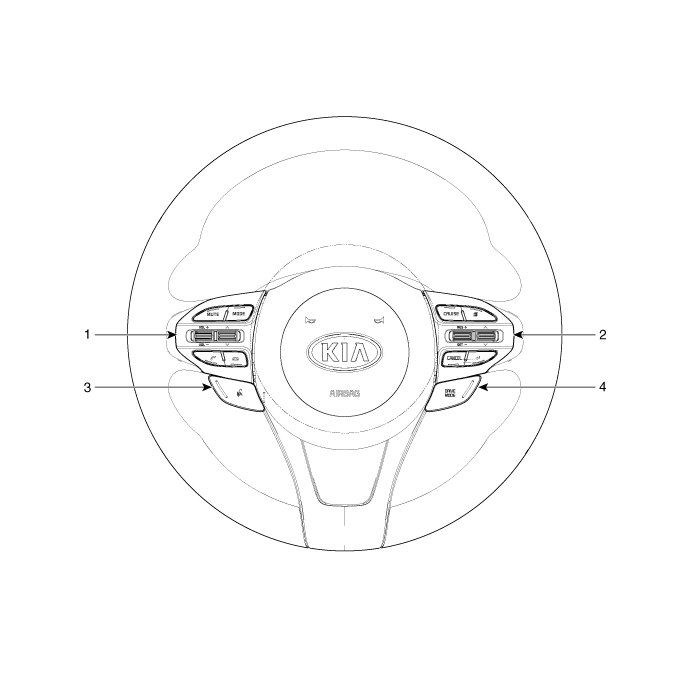

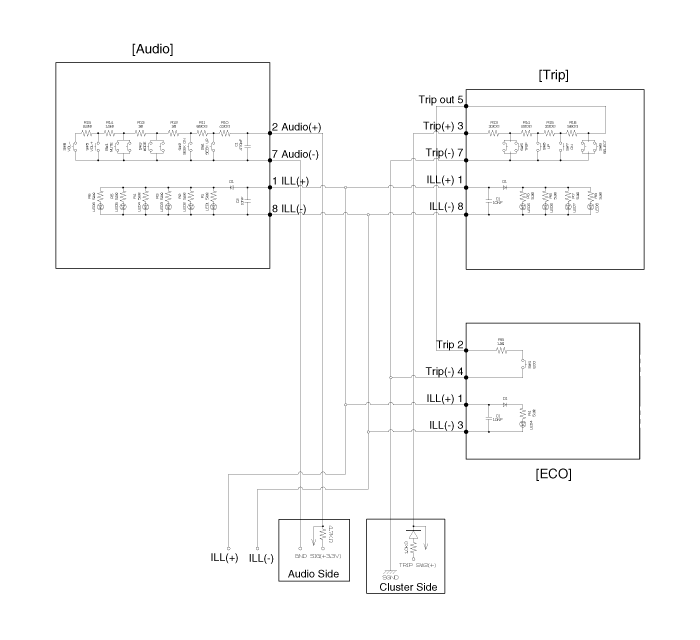

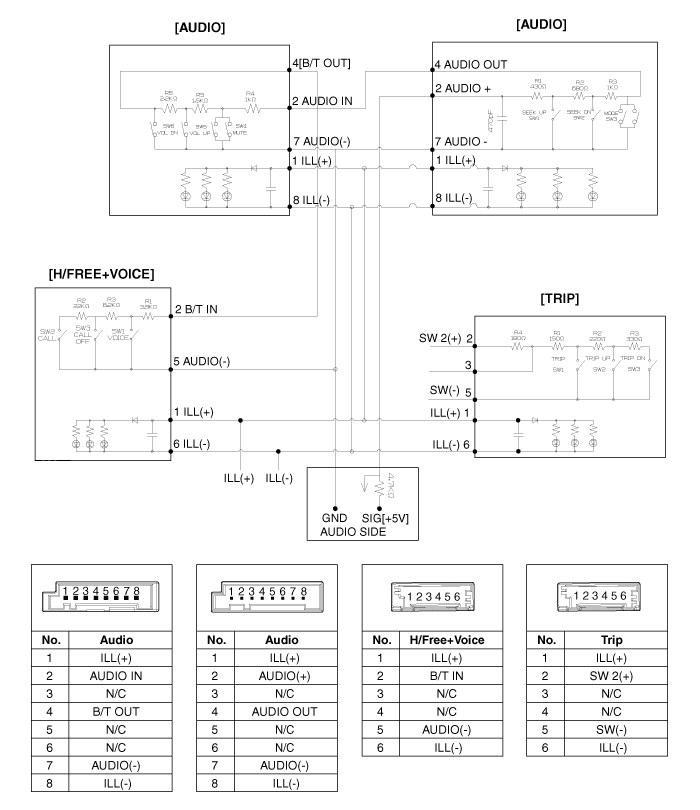

Type B


1. Audio & Drive mode swith
2. Trip & Cruise control switch
3. Voice recognition switch
4. Speed limit switch

Antenna Repair procedures
Removal 1. Remove the rear roof trim. (Refer to Body - "Roof Trim Assembly") 2. Disconnect the roof antenna connector ...

Audio Remote Control Repair procedures
Inspection Type A 1. Check the audio remote control switch (A) for resistance between terminals in each switch position. [Audio] ...
