Kia Cee'd: ISG (Idle Stop and Go) system / Auto Start
To restart the engine from idle stop mode
- Press the clutch pedal when the shift lever is in the N (Neutral) position.

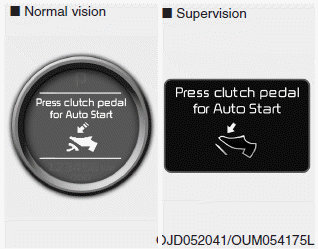

- A message "Press Clutch Pedal for Auto Start" will appear on the LCD display.
- The engine will start and the green
AUTO STOP (
) indicator on the
instrument cluster will go out.
The engine will also restart automatically without the driver’s any actions if the following occurs:
- The fan speed of manual climate control
system is set above the 3rd position
when the air conditioning is on.
- The fan speed of automatic climate
control system is set above the 6th
position when the air conditioning is on.
- When a certain amount of time has
passed with the climate control system
on.
- When the defroster is on.
- The brake vaccum pressure is low.
- The battery charging status is low.
- The vehicle speed exceeds 5 km/h
(3 mph).

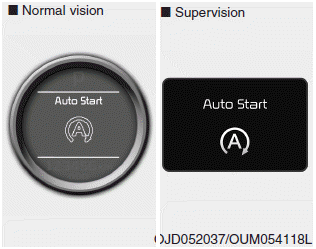

The green AUTO STOP () indicator
on the instrument cluster will blink for 5
seconds and a message “Auto Start” will
appear on the LCD display.
Auto stop
To stop the engine in idle stop mode
1. Decrease the vehicle speed to less
than 5 km/h (3 mph).
2. Shift into N (Neutral) position.
3. Release the clutch pedal.
The engine will stop and the gr ...
Condition of ISG system operation
The ISG system will operate under
the following condition:
- The driver’s seat belt is fastened.
- The driver’s door and engine hood are
closed.
- The brake vaccum pressure is adequate.
- ...
