Kia Cee'd: Manual heating and air conditioning / Temperature control

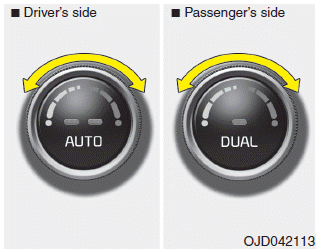

The temperature will increase to the maximum (HI) by turning the knob to the right extremely.
The temperature will decrease to the minimum (Lo) by turning the knob to the left extremely.
When turning the knob, the temperature will increase or decrease by 0.5°C/1°F.
When set to the lowest temperature setting, the air conditioning will operate continuously.
Operate the driver’s side temperature control to adjust the driver side temperature.
Operate the passenger’s side temperature control to adjust the passenger side temperature.
Adjusting the driver and passenger side temperature individually

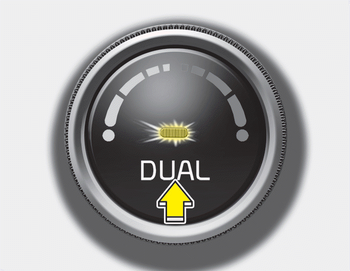

1. Press the DUAL button to operate the driver and passenger side temperature individually. Also, if the passenger side temperature control knob is operated, it will automatically change to the DUAL mode as well.
2. Operate the driver side temperature control to adjust the driver side temperature. Operate the passenger side temperature control to adjust the passenger side temperature.
When the driver side temperature is set to the highest (HIGH) or lowest (LOW) temperature, the DUAL mode deactivates for maximum heating or cooling.
Adjusting the driver and passenger side temperature equally
1. Press the DUAL button again to deactivate DUAL mode. The passenger side temperature will be set to the same temperature as the driver side.
2. Operate the driver side temperature control button. The driver and passenger side temperature will be adjusted equally.
Temperature conversion
You can switch the temperature mode between Centigrade to Fahrenheit as follows:
While pressing the DUAL button, press
the Face-Level selection button
for
3
seconds or more.
The display will change from Centigrade to Fahrenheit, or from Fahrenheit to Centigrade.
✽ NOTICE
If the battery has been discharged or disconnected, the temperature mode display will reset to Centigrade.
