Kia Cee'd: Heating and air conditioning / Temperature control

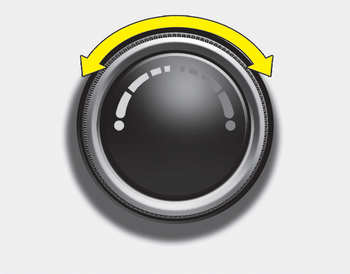

The temperature control knob allows you to control the temperature of the airflow in the vehicle.
To change the temperature:
- Turn the knob to the right to increase temperature.
- Turn the knob to the left to decrease temperature.
Mode selection
The mode selection knob controls the
direction of the air flow through the ventilation
system.
Air can be directed to the floor, dashboard
outlets, or windshield. Six symbols
are used to re ...
Air intake control
The air intake control is used to select
the outside (fresh) air position or recirculated
air position.
To change the air intake control position,
press the control button.
Recirculated air ...
