Kia Cee'd: Heating and air conditioning / Mode selection

The mode selection knob controls the direction of the air flow through the ventilation system.

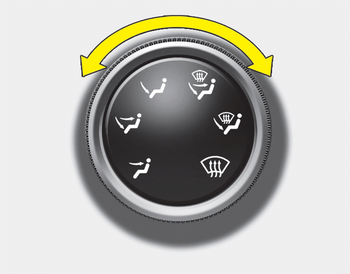

Air can be directed to the floor, dashboard outlets, or windshield. Six symbols are used to represent Face, Bi-Level, Floor, Face / Floor / Defrost, Floor / Defrost and Defrost air position.

Face-Level (B, D, F)

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Bi-Level (B, D, C, E, F)

Air flow is directed towards the face and the floor.

Floor-Level (A, C, D, E)

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.

Face/Floor/Defrost-Level (A, B, C, D, E, F)

Most of the air flow is directed towards the face, the floor and the windshield with a small amount of air directed to the side window defrosters.

Floor/Defrost-Level (A, C, E, D)

Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.

Defrost-Level (A, D)

Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters.

Instrument panel vents

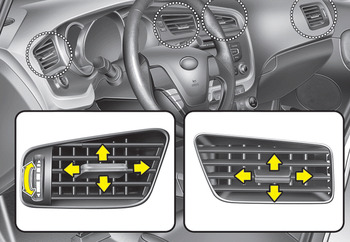

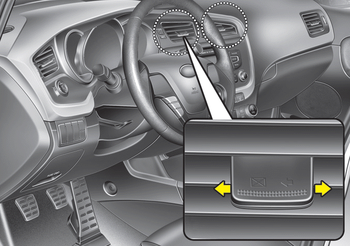

The outlet vents can be opened or closed separately using the thumbwheel or vent control lever.

Also, you can adjust the direction of air delivery from these vents using the vent control lever as shown.

Heating and air conditioning
1. Start the engine. 2. Set the mode to the desired position. To improve the effectiveness of heating and cooling: - Heating: - Cooling: 3. Set the temperature control to the desired pos ...

Temperature control
The temperature control knob allows you to control the temperature of the airflow in the vehicle. To change the temperature: Turn the knob to the right to increase temperature. Turn th ...
