Inspection
Diagnosis With GDS
1.
It will be able to diagnose defects of power door lock with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2.
Select model and "BCM".
3.
Select the "SJB" to check.
4.

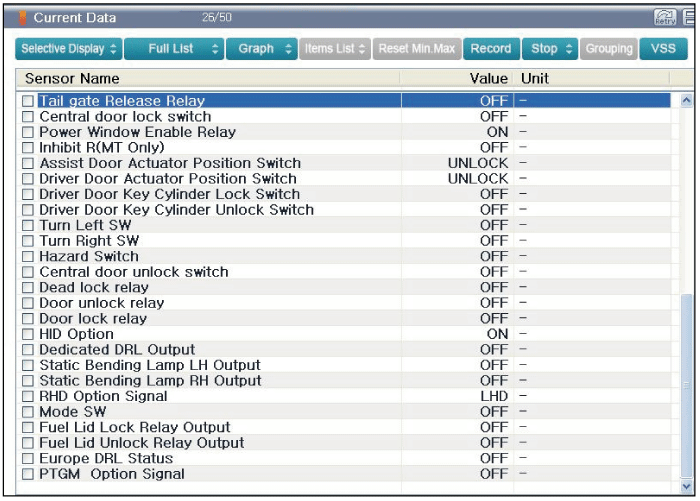

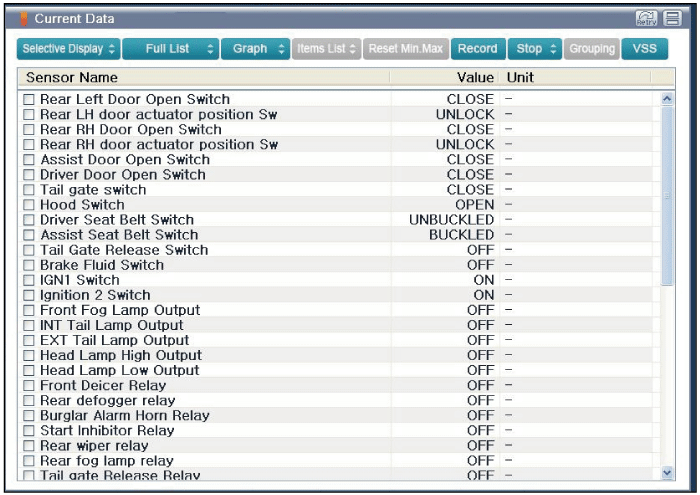

Select "Current data", if you will check current data of power door lock system. It provides input/output status of SJB.

5.
If you will check the power door lock operation forcefully, select "Actuation test".
