Kia Cee'd: Power Door Locks / Power Door Lock Switch Repair procedures
Kia Cee'd JD Service Manual / Body Electrical System / Power Door Locks / Power Door Lock Switch Repair procedures
| Inspection |
| 1. |
The SJB can be diagnosed by using the GDS. The SJB communicates with
the GDS which then displays inputs and outputs along with codes.
It will be able to diagnose defects of power door lock/unlock with GDS
quickly. GDS can operates actuator forcefully, input/output value monitoring
and self diagnosis.
|
| 2. |

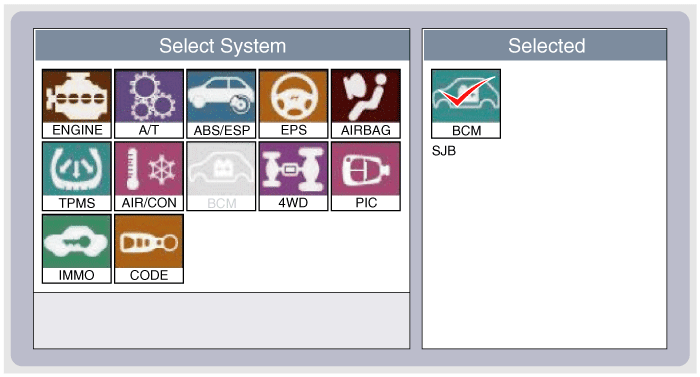

To diagnose the SJB function, select the vehicle model, BCM and SJB.
|
| 3. |

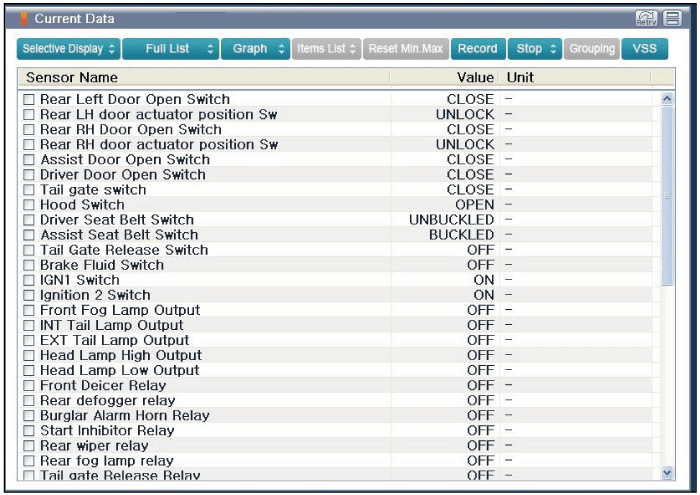

Select "Input/output monitoring", if you will check current data of
power door lock system. It provides input/output status of DDM/ADM.
|
| 4. |

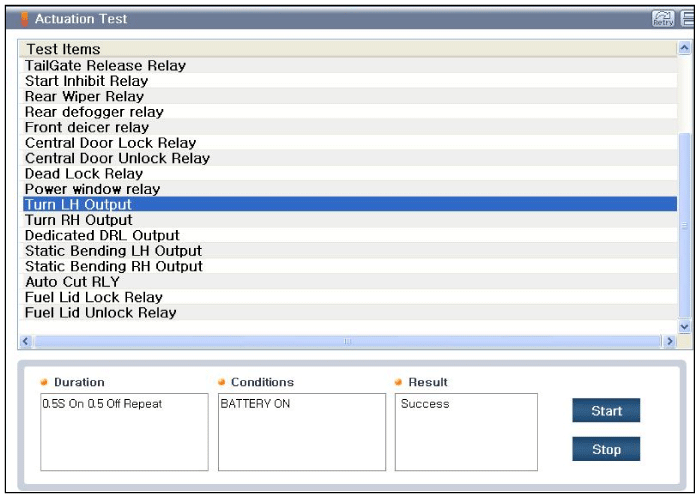

To perform functional test on SJB outputs, select "Actuation Test".
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the crash pad center lower panel.
(Refer to Body - "Crash Pad Center Panel")
|
| 3. |
Remove the center facia switch assembly (A) after loosening screws.
|
| Installation |
| 1. |
Install the center fascia switch assembly.
|
| 2. |
Install the crash pad center lower panel.
|
| 3. |
Connect the negative (-) battery terminal.
|
Power Door Lock Relay Repair procedures
Inspection
Diagnosis With GDS
1.
It will be able to diagnose defects of power door lock with GDS quickly.
GDS can operates actuator forcefully, input/output v ...
