Kia Cee'd: Indicators and Gauges / Instrument Cluster Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Indicators and Gauges / Instrument Cluster Schematic diagrams

Circuit Diagram

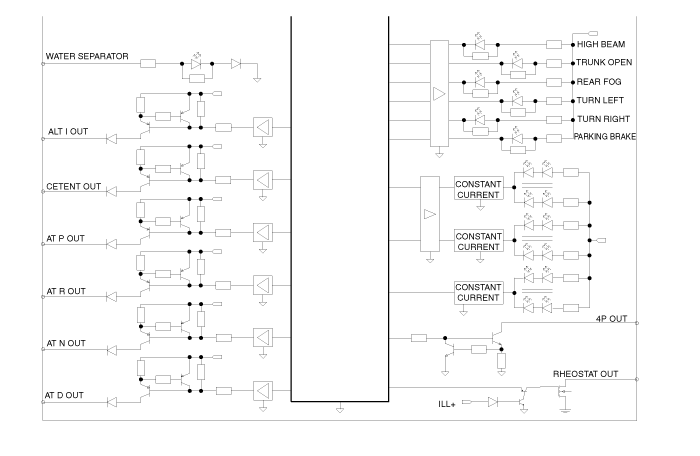

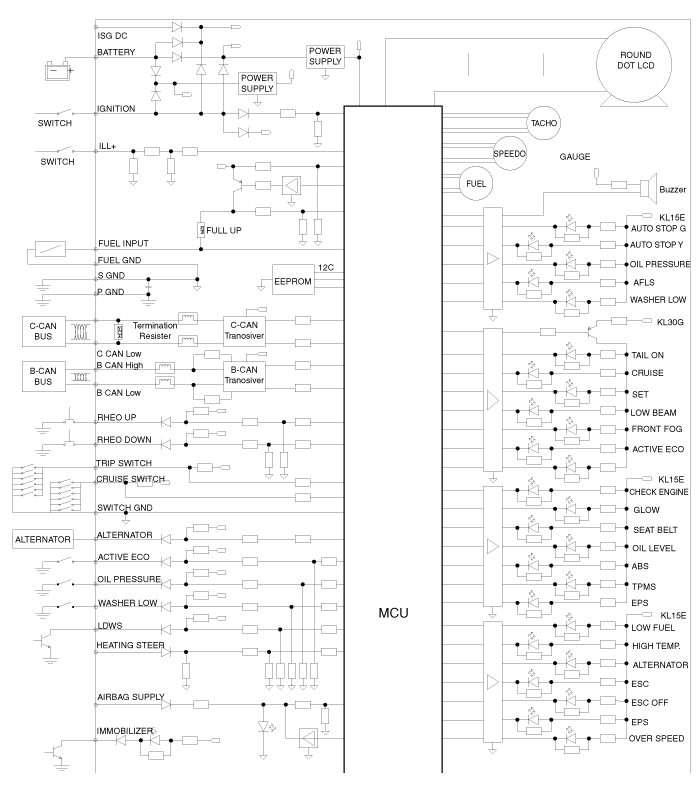

[Standard]

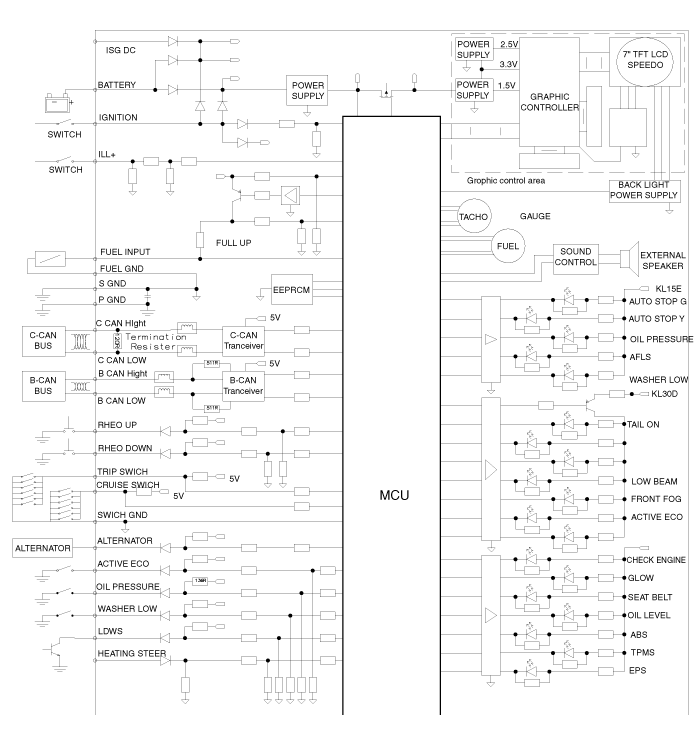

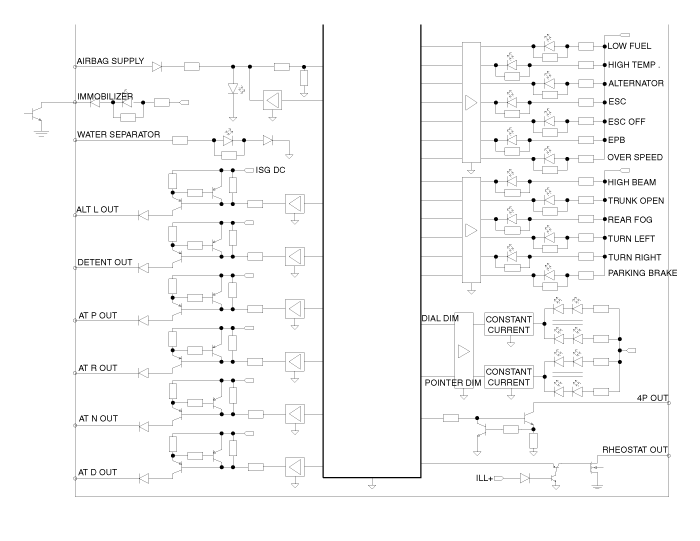

[Supervision]
