Kia Cee'd: Dual Clutch Transmission Control System / Inhibitor Switch Schematic diagrams

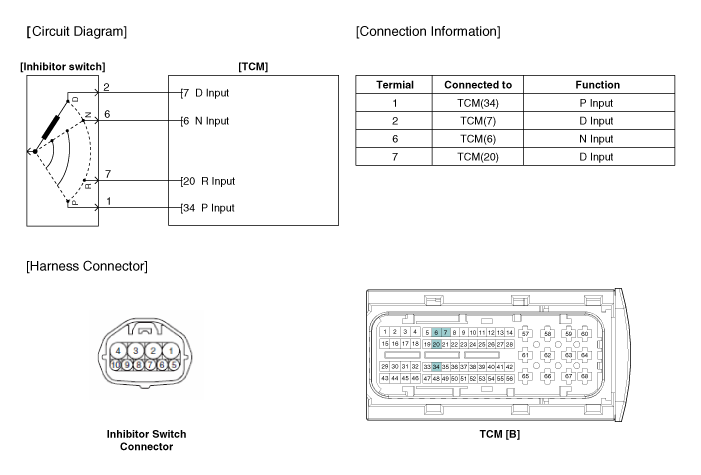

Schematic Diagrams

Inhibitor Switch Specifications
Specification ▷ Type: Single signal output type ▷ Specifications   Item Specifications Output type Combined sign ...

Inhibitor Switch Repair procedures
Inspection 1. Inspect for loosened connectors, faulty connections, bends, corrosion, contamination, deformation, or damage. 2. Dis ...

Other information:

Kia Cee'd Service Manual: Starter Description and operation
Description The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T), ignition lock switch, connection wires and the battery cable. When the ignition key is turned to the start position, current ...

Kia Cee'd Service Manual: Description and operation
Description The charging system included a battery, an alternator with a built-in regulator, and the charging indicator light and wire. The Alternator has eight built-in diodes, each rectifying AC current to DC current. Therefore, DC current appears at alternator " ...
