Kia Cee'd: Lighting control / Headlight position

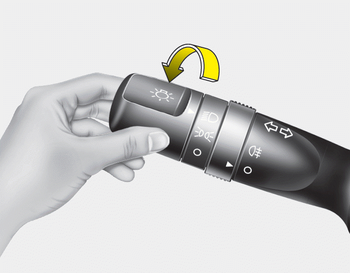

When the light switch is in the headlight position the head, tail, position, license and instrument panel lights are ON.
✽ NOTICE
The ignition switch must be in the ON position to turn on the headlights.
Position light position
When the light switch is in the position
light position, the tail, position, license
and instrument panel lights are ON. ...
Auto light/AFLS position
When the light switch is in the AUTO light
position, the taillights and headlights will
be turned ON or OFF automatically
depending on the amount of light outside
the vehicle.
If your vehic ...
