Kia Cee'd: Lighting control / Position light position
When the light switch is in the position light position, the tail, position, license and instrument panel lights are ON.
Lighting control
The light switch has a Headlight and a
Parking light position.

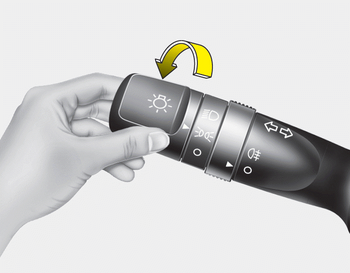

To operate the lights, turn the knob at the
end of the control lever to one of the following
positions:
(1) OFF position
(2) P ...
Headlight position
When the light switch is in the headlight
position the head, tail, position, license
and instrument panel lights are ON.
✽ NOTICE
The ignition switch must be in the ON
position to turn o ...
