Kia Cee'd: Blind Spot Detection system / Blind Spot Detection Unit" Schematic diagrams

Kia Cee'd Service Manual / Body Electrical System / Blind Spot Detection system / Blind Spot Detection Unit" Schematic diagrams

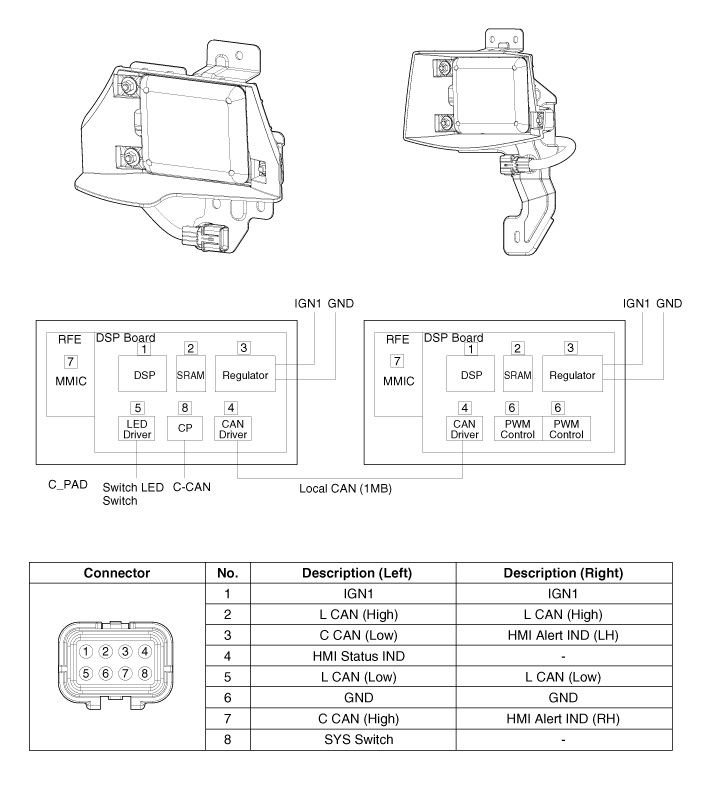

Circuit Diagram

Repair procedures
Diagnosis With GDS 1. BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis. ...

Blind Spot Detection Unit" Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper cover. (Refer to Body - "Rear Bumper Co ...
