Kia Cee'd: Blind Spot Detection system / Blind Spot Detection Switch Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / Blind Spot Detection system / Blind Spot Detection Switch Components and components location

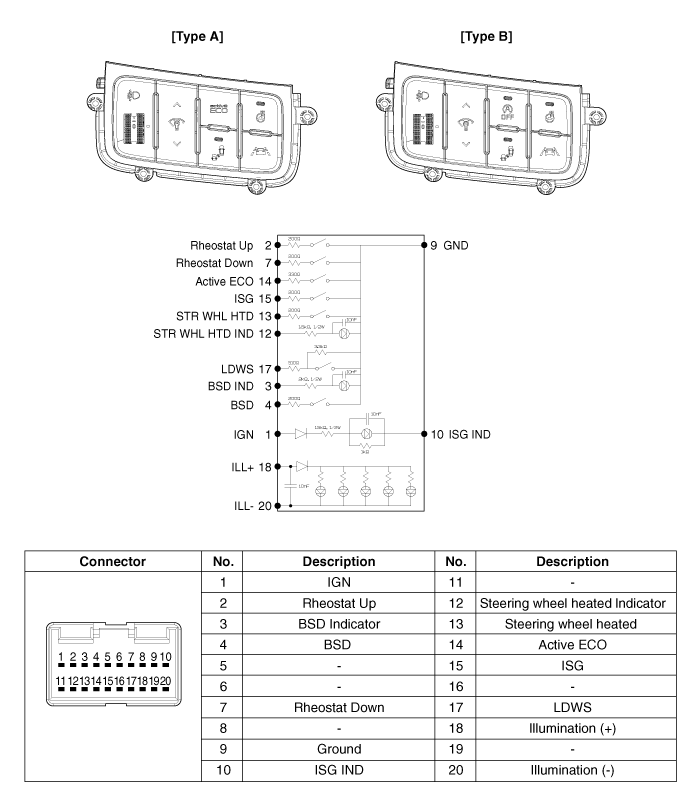

Circuit Diagram

Blind Spot Detection Unit" Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper cover. (Refer to Body - "Rear Bumper Co ...

Blind Spot Detection Switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad ...

Other information:

Kia Cee'd JD Service Manual: Blind Spot Detection Unit" Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper cover. (Refer to Body - "Rear Bumper Cover") 3. Remove the BSD unit (A) after loosening the mounting nu ...

Kia Cee'd JD Service Manual: Multimedia Jack Schematic diagrams
Circuit Diagram   No Terminal Description Condition Specified Condition 1 USB /iPod power USB/iPod device is inserted 4.9V ~ 5.1V 2 USB D- ...
