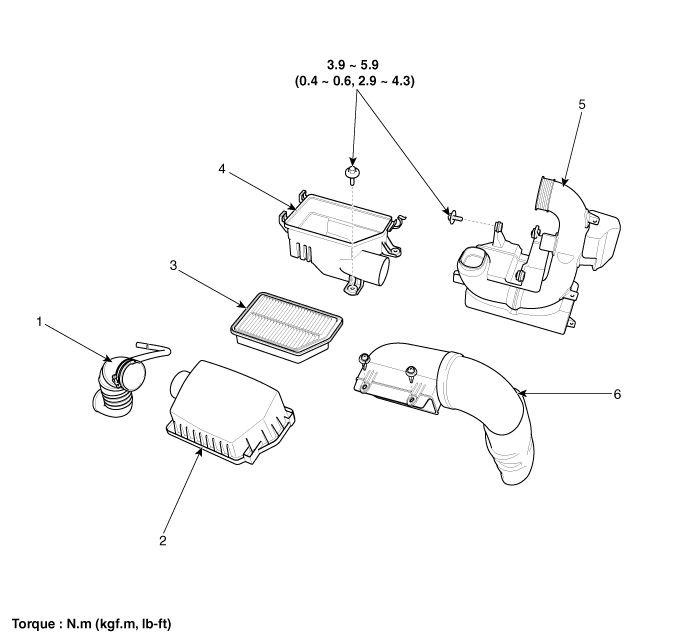

Components

1. Air intake hose
2. Air cleaner cover
3. Air cleaner filter

4. Air cleaner body
5. Resonator
6. Air duct

Air Cleaner Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Remo ...
