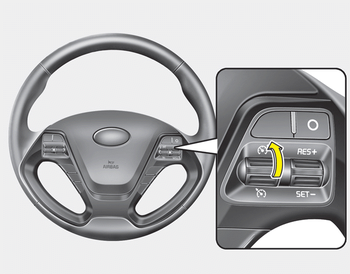

1. Move the lever up () on the
steering
wheel, to turn the system on.

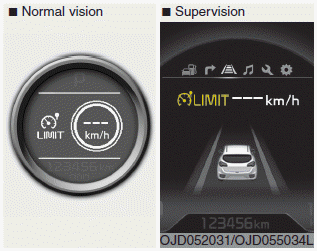

The speed limit indicator light will illuminate.
2. Move the lever down (to SET-).

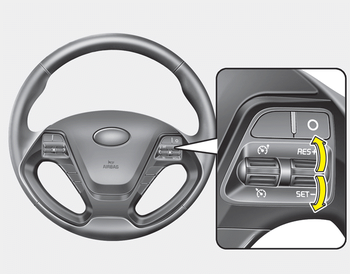

3. Move the lever up (to RES+) or down (to SET-), and release it at the desired speed. Move the lever up (to RES+) or down (to SET-) and hold it. The speed will increase or decrease by 5 km/h (3 mph).
Move the lever up (to RES+) or down (SET-) and release it immediately. The speed will increase or decrease by 1 km/h.

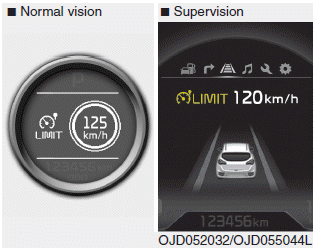

The set speed limit will display on the instrument cluster.
The set speed limit will be displayed.
To drive over the preset speed limit you must depress hard on the accelerator pedal (more than approximately 80%) until the kick down mechanism works with a clicking noise. Then the set speed limit will blink and chime will sound until you return the vehicle speed within the speed limit.
✽ NOTICE
Kia Cee'd JD Service Manual: Troubleshooting
Troubleshooting
Symptom
Possible cause
Remedy
Tachometer does not operate
Memory2 fuse (10A) blown
Check for short and replace fuse
CAN line faulty
Check the EMS
...
Kia Cee'd JD Service Manual: Power Mosfet (DATC) Repair procedures
Inspection
1.
Turn the ignition switch ON.
2.
Manually operate the control switch and measure the voltage of the blower
motor.
3.
Select the control switch to raise the voltage until high speed.
...
