Kia Cee'd: Clutch Release Fork and Clutch Release Bearing / Components and components location

Kia Cee'd JD Service Manual / Clutch System / Clutch Release Fork and Clutch Release Bearing / Components and components location

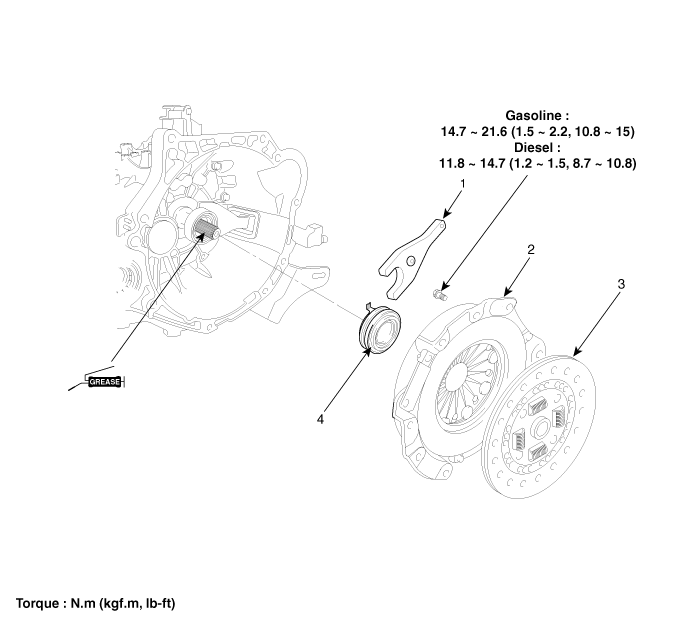

Components

1. Clutch release fork
2. Clutch cover assembly

3. Clutch disk assembly
4. Clutch release bearing

Clutch Release Fork and Clutch Release Bearing

...

Repair procedures

Removal 1. Remove the transaxle assembly. G 1.6 MPI (Refer to Manual Transaxle System - " Manual Transaxle") G 1.4 MPI (Refer to Manual ...
