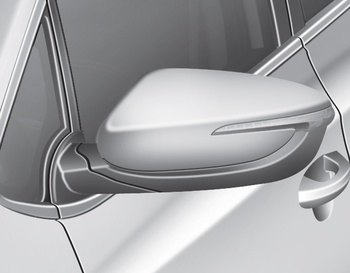

Kia Cee'd: Light bulbs / Side repeater light bulb replacement
If the light bulb does not operate, we recommend that the system be checked by an authorized Kia dealer.
Front fog light
■ Based on 10m screen
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded
region). ...
Rear combination light bulb replacement
(1) Rear turn signal light
(2) Stop/tail light
(3) Back-up light
(for 3 Door and 5 Door)
(4) Tail light or stop/tail light
(for LED type)
(5) Rear fog light (for 5 Door), Rear fog
light ...
