Kia Cee'd: Headlight and front fog light aiming / Front fog light

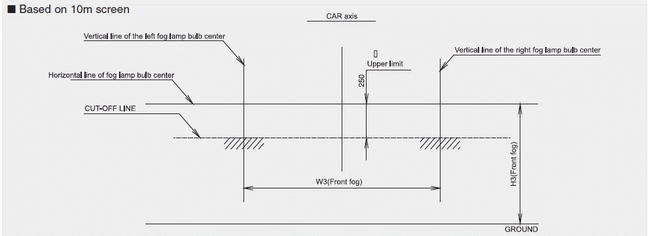

■ Based on 10m screen
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
Head lamp low beam (RHD)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the
picture.
3. When aiming the low beam, vertical aiming should be adjusted a ...
