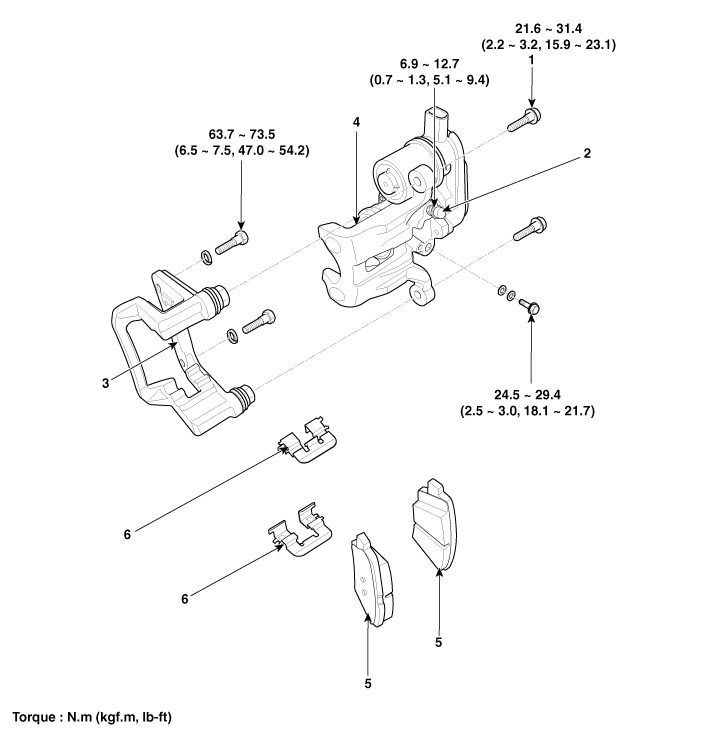

Components [Without EPB]

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier

4. Caliper body
5. Brake pad
6. Pad retainer

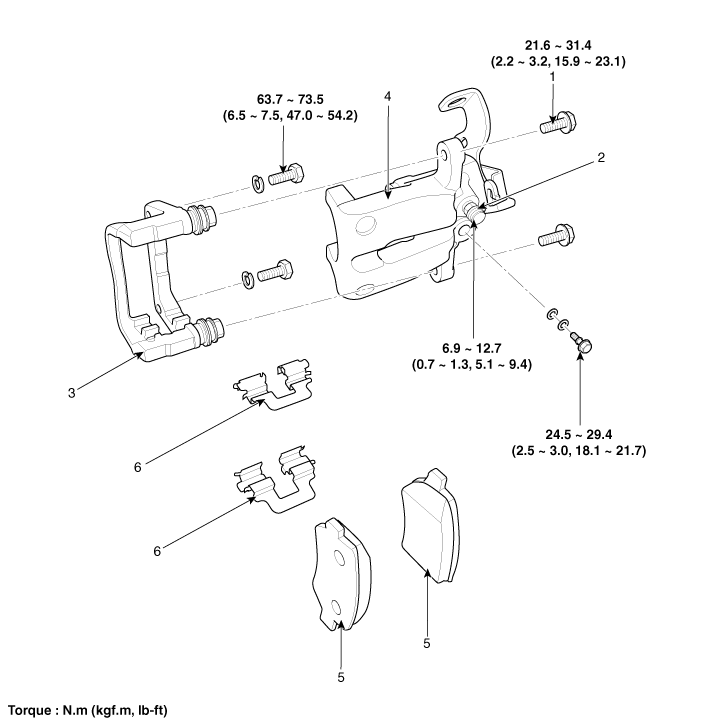

Components [With EPB]

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier

4. Caliper body
5. Brake pad
6. Pad retainer

Front Disc Brake Repair procedures

Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) ...

Rear Disc Brake Repair procedures

Removal [Without EPB] 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 ...
