Kia Cee'd: Scheduled maintenance service / NORMAL MAINTENANCE SCHEDULE - FOR EUROPE
The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of service is determined by whichever occurs first.
Scheduled maintenance service
Follow Normal Maintenance Schedule
if the vehicle is usually operated where
none of the following conditions apply. If
any of the following conditions apply, follow
Maintenance Under Severe Us ...
MAINTENANCE UNDER SEVERE USAGE CONDITIONS - FOR EUROPE
The following items must be serviced more frequently on cars mainly used
under severe driving conditions.

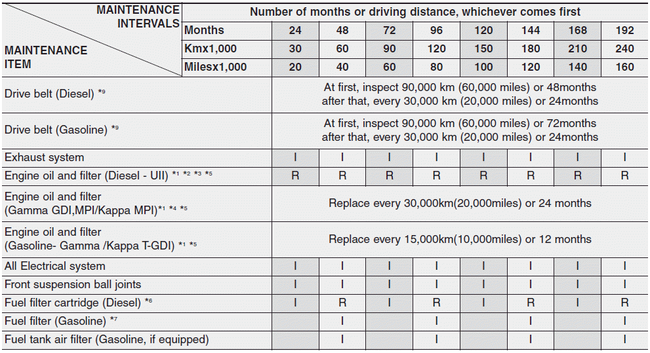

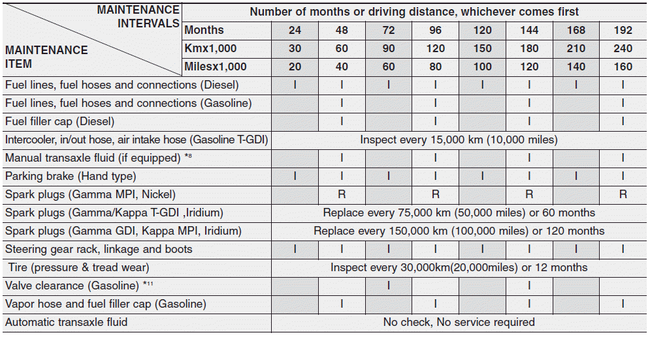

Refer to the chart below for the appropriate maintenance intervals.
R : Replace
I : Ins ...
