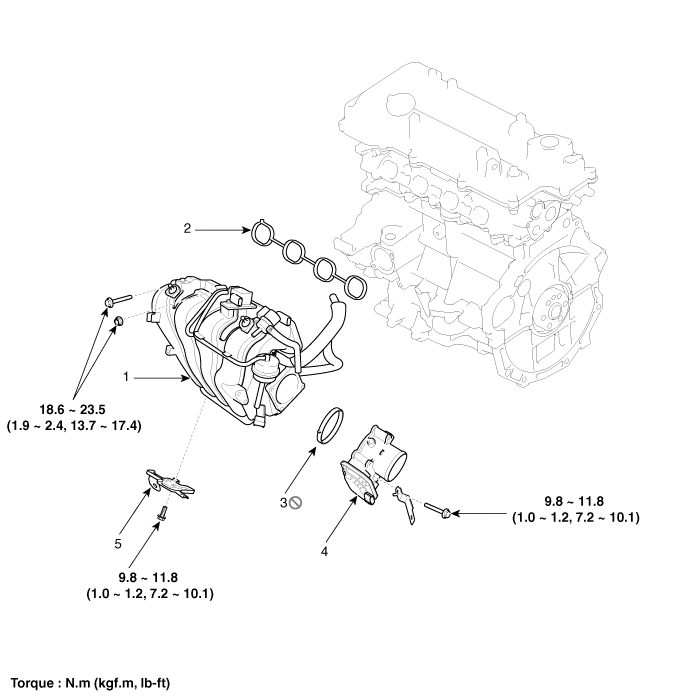

Components

1. Intake manifold assembly
2. Intake manifold gasket

3. Electronic throttle body gasket
4. Electronic throttle body
5. Bracket

Variable Intake Solenoid(VIS) Actuator Repair procedures

Removal and Installation 1. Disconnect the battery nagative terminal. 2. Disconnect the lever (A) and hose (B). 3. ...

Intake Manifold Repair procedures

Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Remo ...
