Kia Cee'd: IMS (Integrated Memory) / IMS Power Seat Control Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Power Seat Control Schematic diagrams

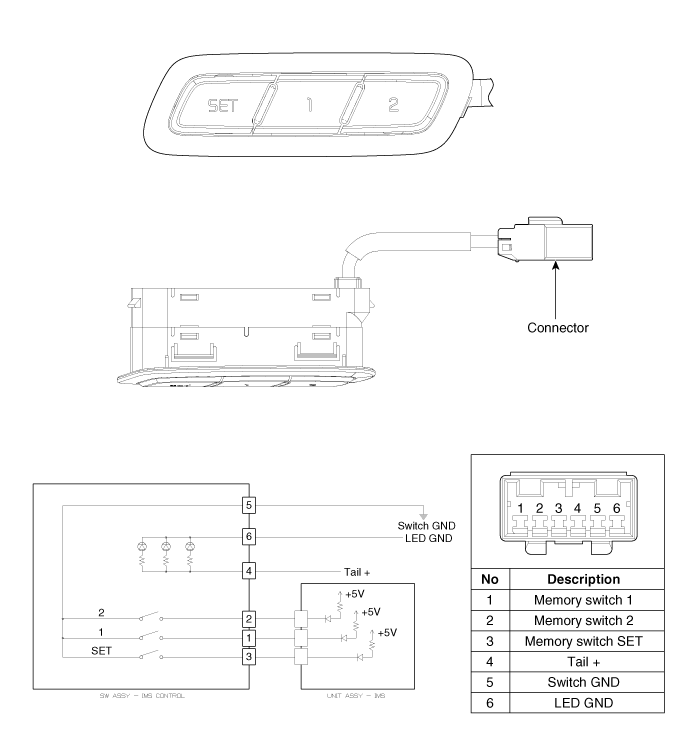

Circuit diagram

IMS (Integrated Memory System) module Repair procedures
Removal 1. Remove the negative (-) battery terminal. 2. Remove the driver seat in the car. (Refer to Body - "Front Seat As ...

IMS Power Seat Control Repair procedures
Inspection 1. Disconnect the IMS control switch connector. 2. With the power IMS control switch in each position, make sure that ...
