Kia Cee'd: IMS (Integrated Memory) / Components and components location

Kia Cee'd JD Service Manual / Body Electrical System / IMS (Integrated Memory) / Components and components location

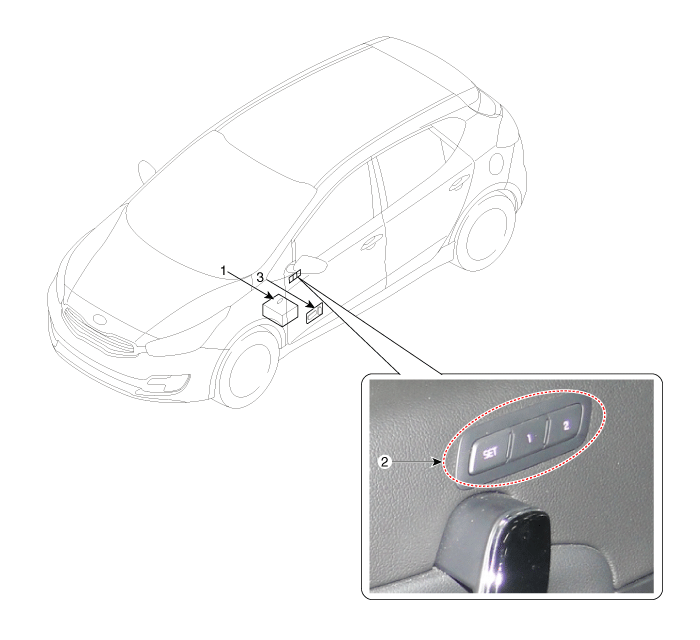

Component Location

1. Seat Memory Unit (IMS)
2. IMS control switch

3. IMS driver power seat control

Specifications

Specifications IMS Electrical System Item Specification Rating voltage DC 12V Operating voltage ...

Schematic diagrams

Circuit Diagram Input/Output Specification Connector Pin Lay Out IMS input/output pin information No Signal Name ...
