■ Normal vision
■ Supervision

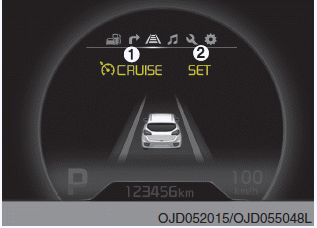

1. Cruise indicator
2. Cruise set indicator

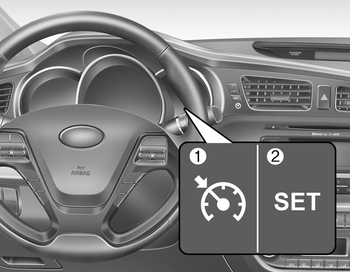

The cruise control system allows you to program the vehicle to maintain a constant speed without pressing the accelerator pedal.
This system is designed to function above approximately 30 km/h (20 mph).
WARNING
CAUTION
During cruise-speed driving of a manual transaxle vehicle, do not shift into neutral without depressing the clutch pedal, since the engine will be overrevved. If this happens, depress the clutch pedal or release the cruise control ONOFF switch.
✽ NOTICE
Kia Cee'd JD Service Manual: Repair procedures
Inspection
Check it by the procedure below to see if the function of the ECM is normal.
1.
Turn the ignition key to the "ON" position.
2.
Cover the front sensor to stop functioning.
3.
Shin ...
Kia Cee'd JD Service Manual: Input Speed Sensor 1 Specifications
Specification
Input Speed Sensor 1
▷ Type: Hall effect sensor
▷ Specifications
Item
Specifications
Output voltage (V)
Low
0.7
High
1.4
...
