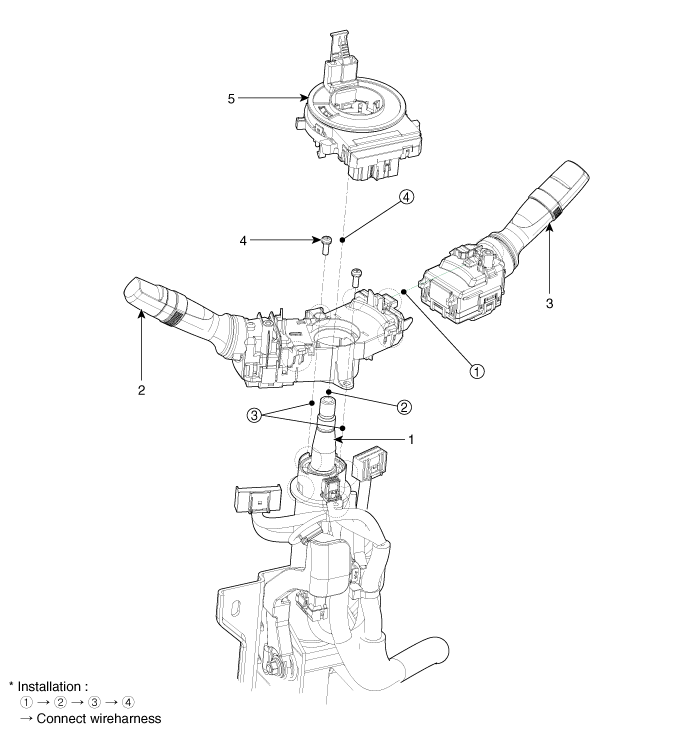

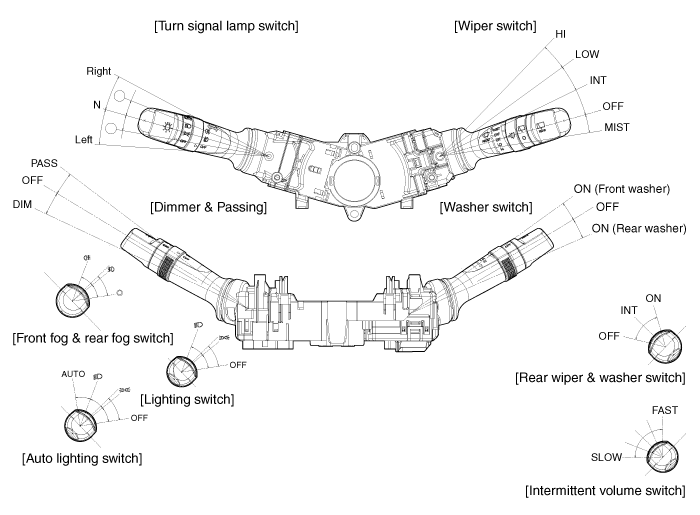

Components (1)

1. Steering column
2. Lighting switch
3. Wiper switch

4. Screw
5. Clock spring

Components (2)

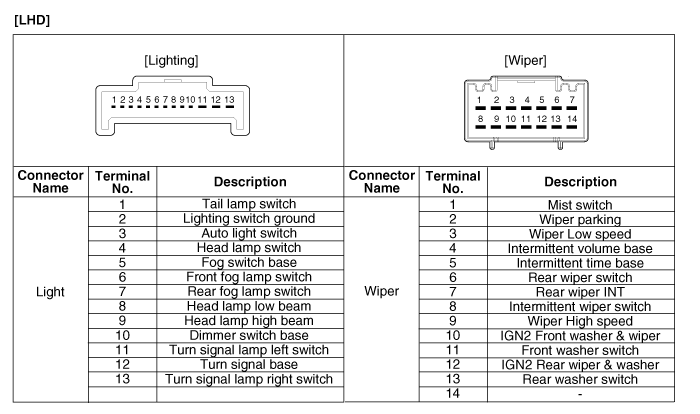

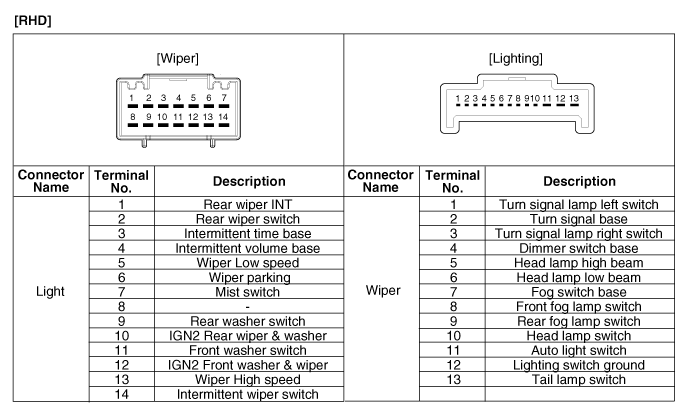

Specifications

Specifications Items Specifications Rated voltage DC 12V Operating temperature range -22 ~ +17 ...

Repair procedures

Inspection Lighting Switch Inspection With the multifunction switch in each position, make sure that continuity exists between the terminals below. If continuity is not as speci ...
