Kia Cee'd: Blind Spot Detection system (BSD) / BSD (Blind Spot Detection) / LCA (Lane Change Assist)

Blind Spot Detection system (BSD)

The Blind Spot Detection System (BSD) uses radar sensors in the rear bumper to monitor and warn the driver of an approaching vehicle in the driver's blind spot area. The system monitors the ...

Operating conditions

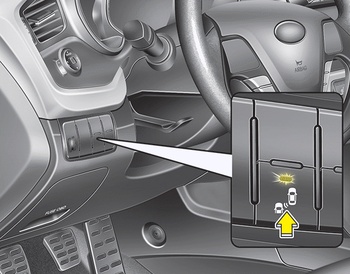

To operate: Press the BSD switch with the Ignition switch in the ON position. The indicator on the BSD switch will illuminate. When the vehicle speed exceeds 30 km/h (20 mph), the system will ...
