Kia Cee'd: Brake System / Brake Line Components and components location

Kia Cee'd JD Service Manual / Brake System / Brake System / Brake Line Components and components location

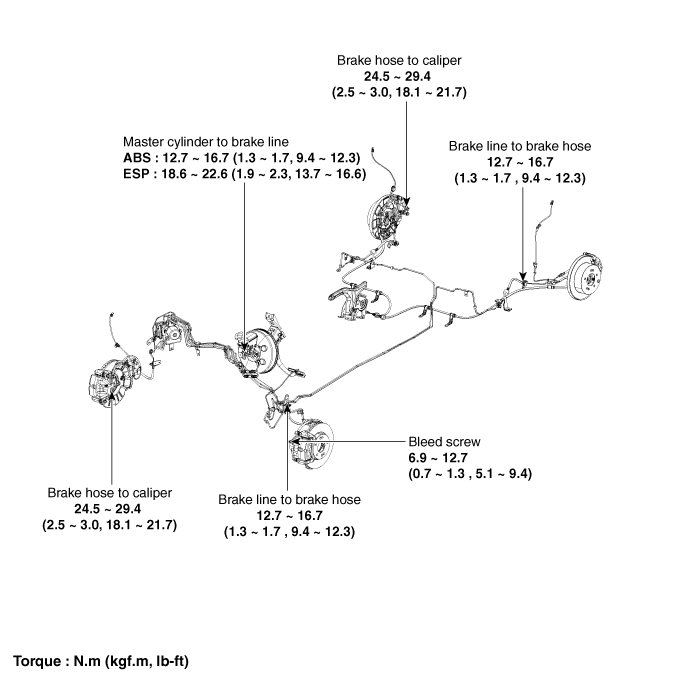

Components

Master Cylinder Repair procedures
Removal [LHD] 1. Turm ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the battery. (Refer to En ...

Brake Line Repair procedures
Removal 1. Disconnect the brake fiuid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the mast ...
