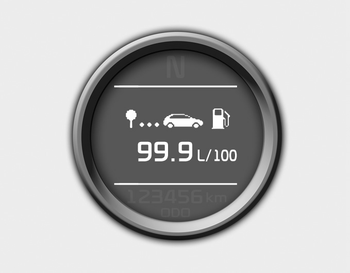

Kia Cee'd: Trip computer / Average fuel economy (L/100 km or MPG)
This mode calculates the average fuel consumption from the total fuel used and the distance since the last average fuel economy reset. The total fuel used is calculated from the fuel consumption input. For an accurate calculation, drive more than 50 m (0.03 miles).
To clear the average fuel economy to zero (--.-), do as follow;
• When the “AVG Fuel Economy” of “User Setting” is in the “Auto Reset”
If the vehicle speed exceeds 1 km/h after refueling more than 6 l, the average fuel consumption will be cleared to zero (---).
• When the “AVG Fuel Economy” of “User Setting” is in the “Manual Reset”
Pressing the
button for more
than 1
second, when the average fuel consumption
is displayed, clears the average fuel
consumption to zero (--.-).
Distance to empty (km or mi.)
This mode indicates the estimated distance
the vehicle can be driven with the
remaining fuel. When the remaining distance
is below 50 km (30 miles), “---” will
be displayed.
The meter ...
Instant fuel economy (L/100 km or MPG)
This mode calculates the instant fuel consumption
during the last few seconds.
✽ NOTICE
If the vehicle is not on level ground or
the battery power has been interrupted,
the “Distanc ...
