Components (1)

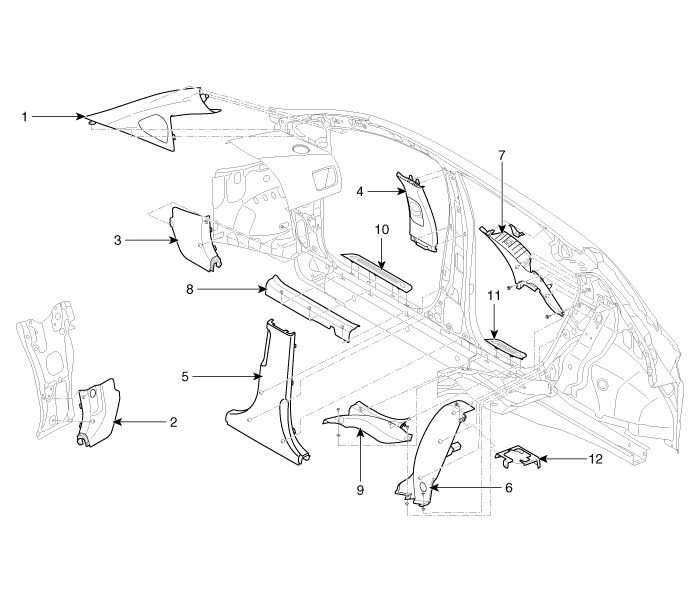

[5Door]

1. Front pillar trim
2. Cowl side trim [LH]
3. Cowl side trim [RH]
4. Center pillar upper trim
5. Center pillar lower trim
6. Rear wheel house trim

7. Rear pillar trim
8. Front door scuff trim
9. Rear door scuff trim
10. Front door step trim
11. Rear door step trim
12. Rear seat belt bracket

Components (2)

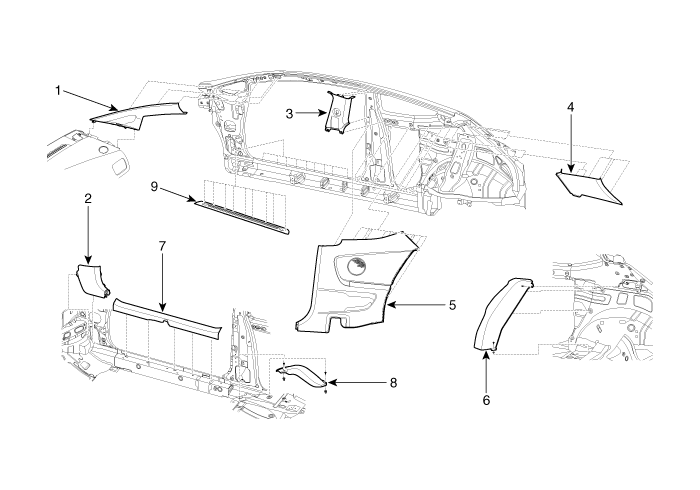

[3Door]

1. Front pillar trim
2. Cowl side trim
3. Center pillar upper trim
4. Rear pillar trim
5. Rear inner outer trim

6. Rear wheel house trim
7. Front door scuff trim
8. Rear door scuff trim
9. Front door step trim
