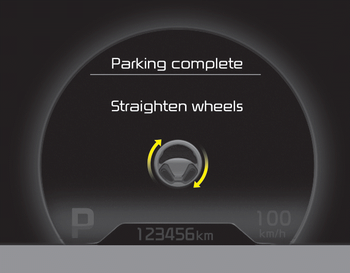

Kia Cee'd: How the system works (Parking mode) / 6. Smart Parking Assist System completed
Complete parking your vehicle according to the instructions on the LCD display. If required, manually control the steering wheel and complete parking your vehicle.
✽ NOTICE
The brake pedal must be depressed by the driver while parking your vehicle.
The system may be cancelled in the below conditions:
- Ignoring the gear shift message and drive the vehicle approximately 150cm (59in).
- The front and rear Parking Assist System warning sound (distance from object is within 30cm: continuous beep) is heard at the same time.
- 6 minutes have passed since the vehicle has been controlled by the Smart Parking Assist System.
- The shift lever is changed to the P (Park) or R (Reverse) position while searching for parking space.
