Kia Cee'd: Panorama sunroof / Sunshade

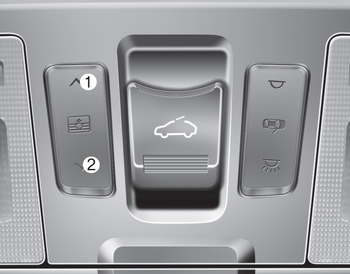

- To open the sunshade, press the sunshade control switch(1).
- To close the sunshade when the sunroof
glass is closed.
- Press the sunshade control switch(2). - Push the sunroof control lever forward or pull it down.
To stop the sliding at any point, press the sunshade control switch momentarily.
Sunroof open warning
If the driver removes the ignition key
(smart key: turns off the engine) and
opens the driver-side door when the sunroof
is not fully closed, the warning chime
will sound for approximately 7 ...
Sliding the sunroof
When the sunshade is closed
If you pull the sunroof control lever backward,
the sunshade will slide all the way
open then the sunroof glass will slide all
the way open. To stop the sunroof mo ...
