Kia Cee'd: Panorama sunroof / Sunroof open warning

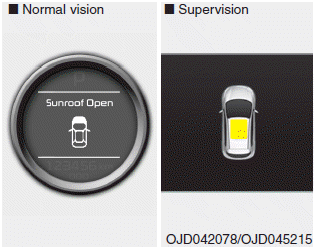

If the driver removes the ignition key (smart key: turns off the engine) and opens the driver-side door when the sunroof is not fully closed, the warning chime will sound for approximately 7 seconds and a warning message will appear on the LCD display.
Close the sunroof securely when leaving your vehicle.
