Kia Cee'd: Starting System / Starter Schematic diagrams

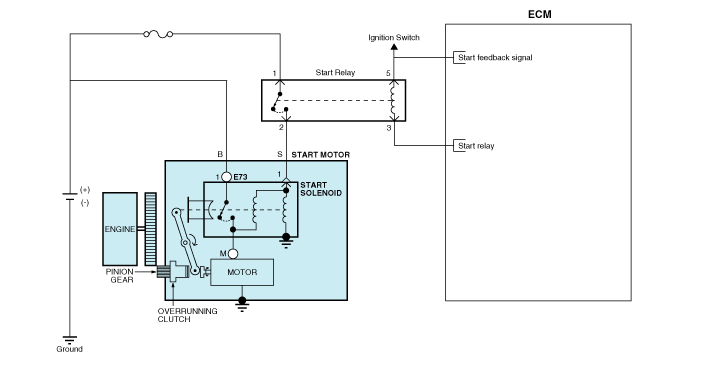

Circuit Diagram

Starter Components and components location
Components   1. Screw 2. Front housing 3. Stop ring 4. Stopper 5. Overunn clutch 6. Lever 7. Lever plate 8. Lever packing 9. Magnet s ...

Starter Repair procedures
Removal 1. Disconnect the battery negative terminal. 2. Remove the air duct and air cleaner assembly. (Refer to Engine Mechanical ...
