Kia Cee'd: Dual Clutch Transmission Control System / Shift Cable Components and components location

Kia Cee'd JD Service Manual / Dual Clutch Transmission(DCT) System / Dual Clutch Transmission Control System / Shift Cable Components and components location

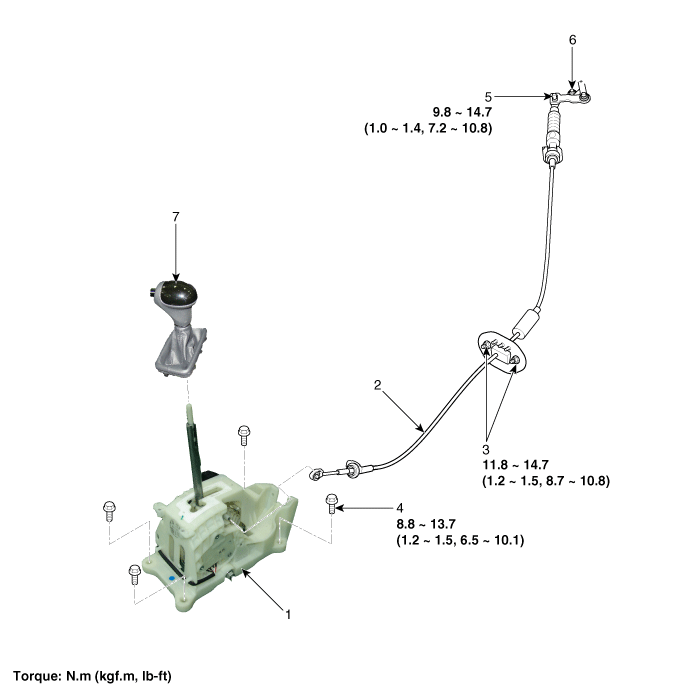

Components

1. Shift lever assembly
2. Shift cable assembly
3. Retainer
4. Bolt

5. Nut
6. Manual control lever
7. Knob

Shift Lever Repair procedures

Removal 1. Remove the floor console assembly. (Refer to Body - "Floor Console") 2. Remove the air duct. ...

Shift Cable Repair procedures

Removal 1. Remove the floor console assembly. (Refer to Body - "Floor Console") 2. Remove the air duct. ...
