Kia Cee'd: Interior Trim / Rear Wheel House Trim Components and components location

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Interior Trim / Rear Wheel House Trim Components and components location

Component Location

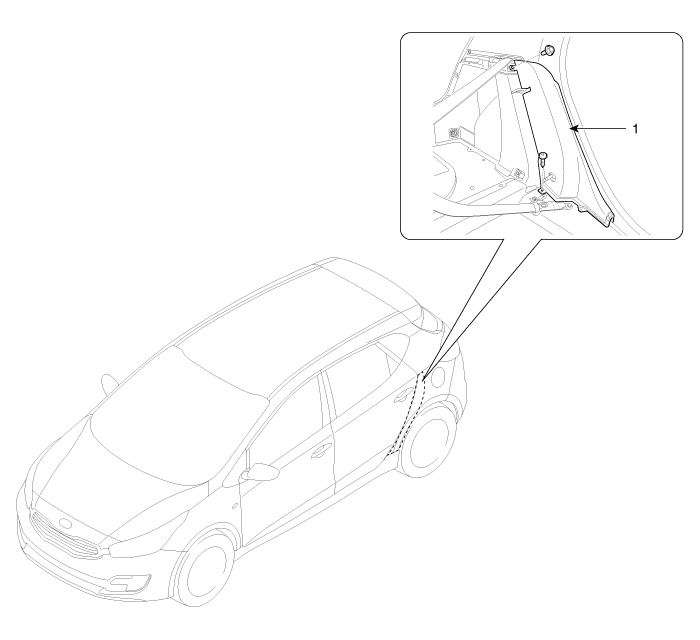

[5Door]


1. Rear wheel house trim

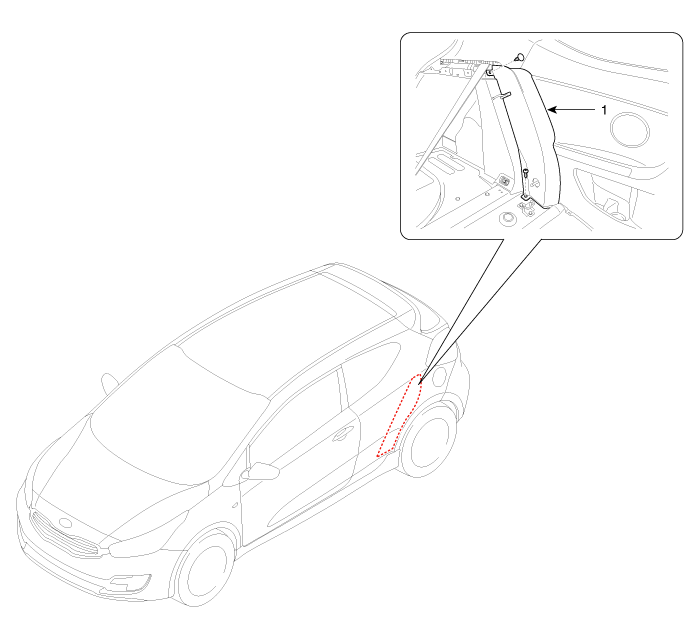

[3Door]


1. Rear wheel house trim
