Kia Cee'd: Power Windows / Power Window Switch Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Power Windows / Power Window Switch Schematic diagrams

Circuit Diagram

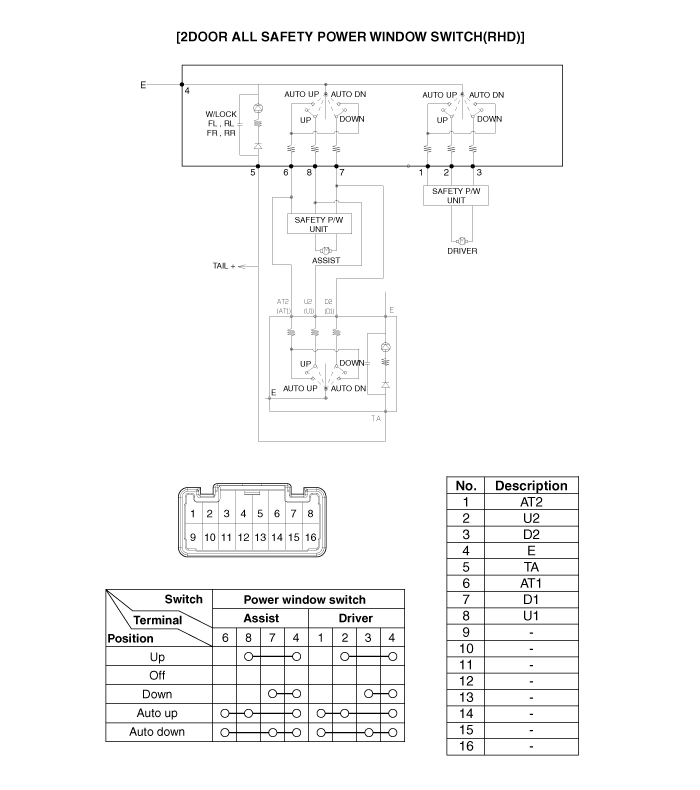

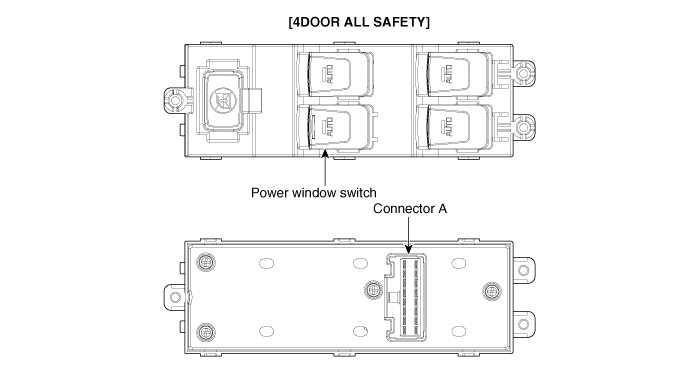

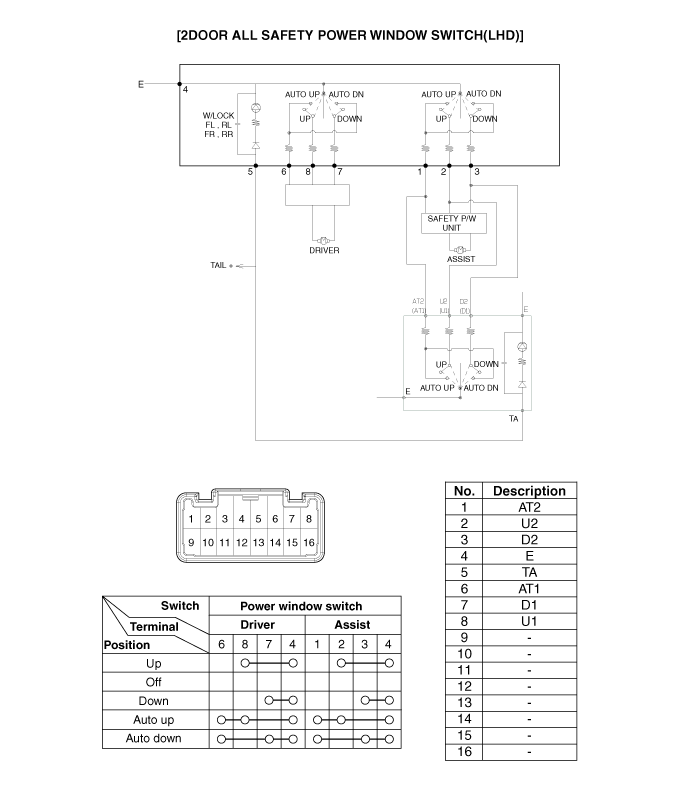

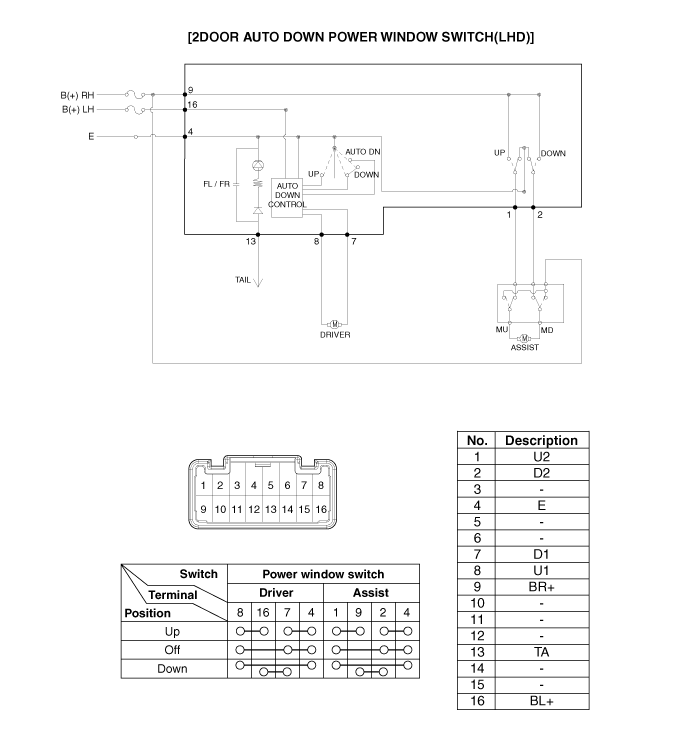

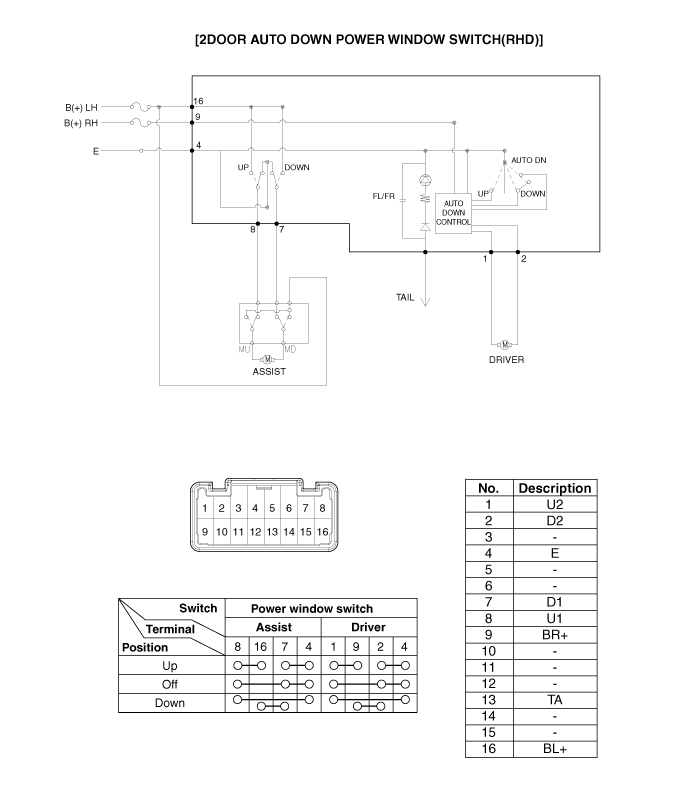

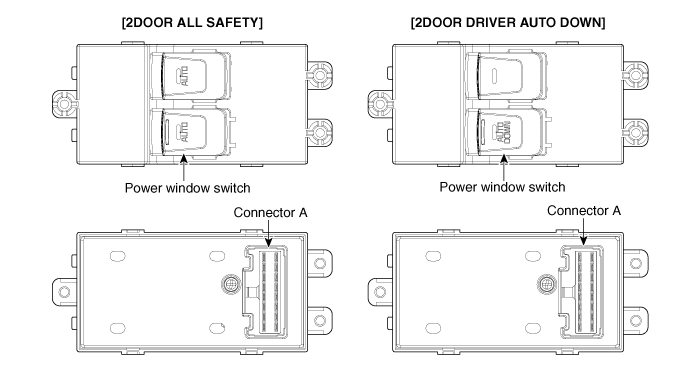

Driver Power Window Switch

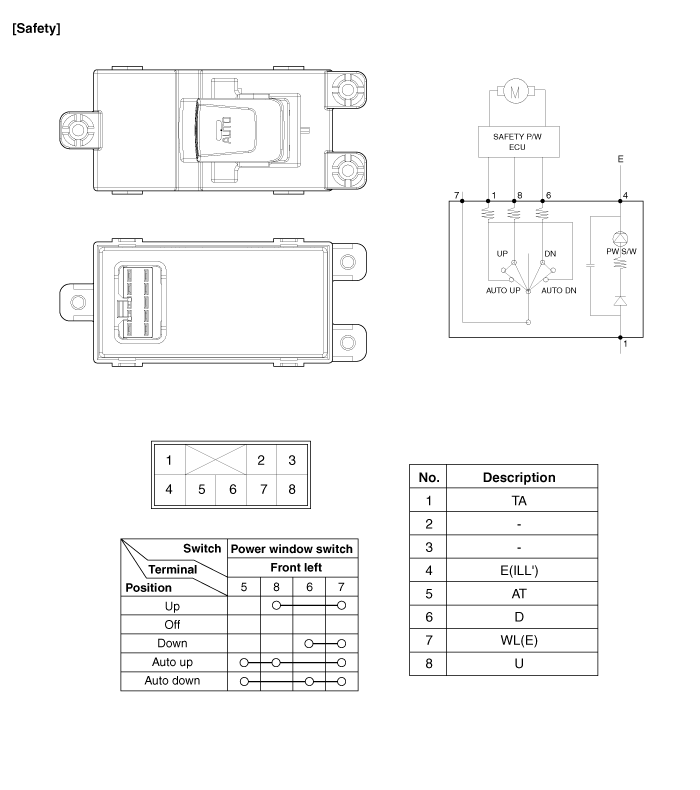

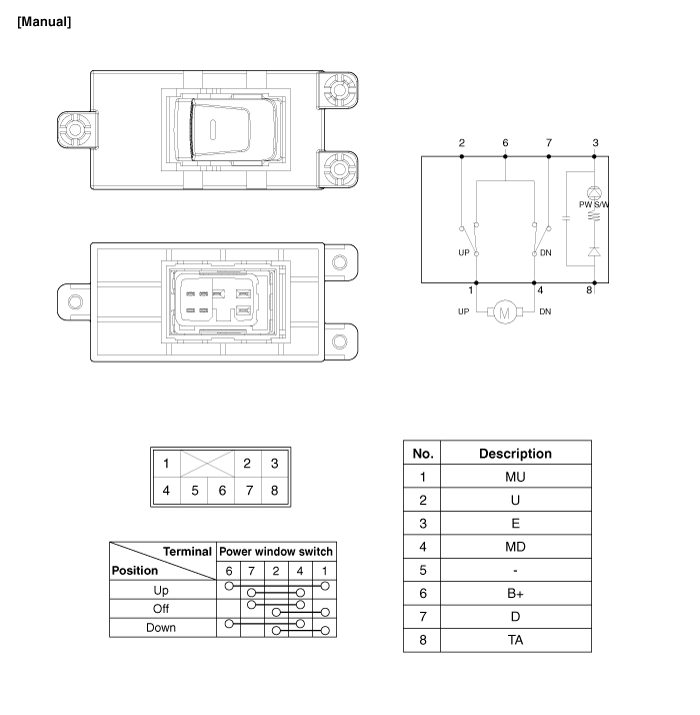

Passenger & Rear Power Window Switch

Power Window Motor Repair procedures
Inspection Front Power Window Motor Inspection 1. Remove the front door trim. (Refer to Body - "Front Door Trim") 2. ...

Power Window Switch Repair procedures
Inspection Power Window Main Switch Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the front door trim. ...
