Kia Cee'd JD Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch Schematic diagrams

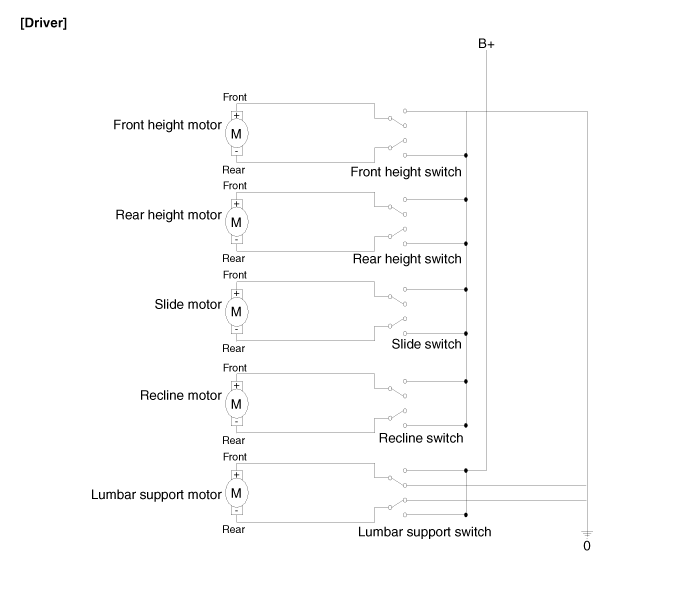

Circuit Diagram

Power Seat Motor Repair procedures
Inspection Power Seat Motor 1. Remove the seat and all motor connectors.   A : Slide motor D : Recline motor ...

Power Seat Control Switch Repair procedures

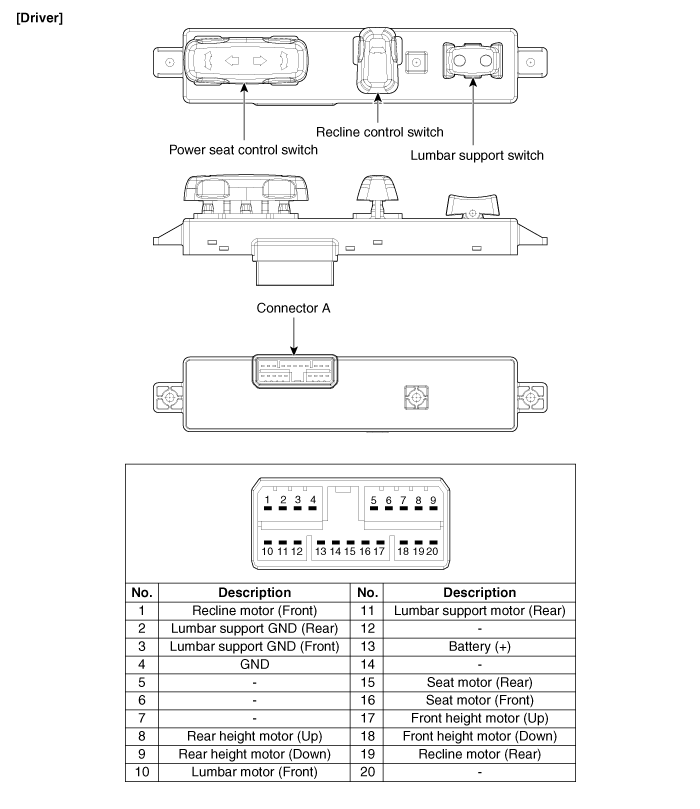

Inspection 1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, r ...
