Kia Cee'd: Seat Electrical / Power Seat Control Switch Repair procedures

Kia Cee'd JD Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch Repair procedures

Inspection
1.

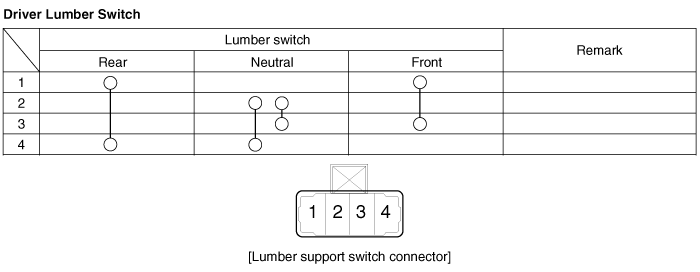

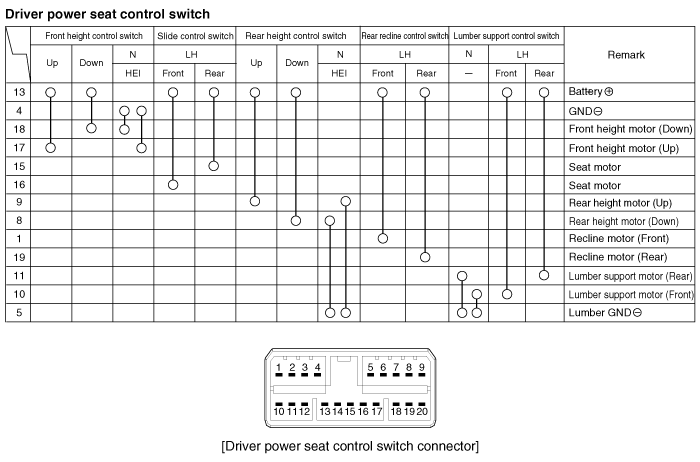

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
A : Power seat control switch
B : Lumbar support switch

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front seat shield outer cover (A).
(Refer to Body - "Front Seat Shield Outer Cover")

3.
Disconnect the power seat control switch connector (A).

4.
Remove the power seat control switch (A) after loosening the mounting screws.

Installation
1.
Connect the connector and install the power seat control switch.
2.
Install the front seat shield outer cover.
Power Seat Control Switch Schematic diagrams
Circuit Diagram ...

Seat Heater Switch Schematic diagrams
Circuit Diagram [LHD] [RHD] ...
