Kia Cee'd: Instrument cluster (Super vision) / Odometer (km or mi.)

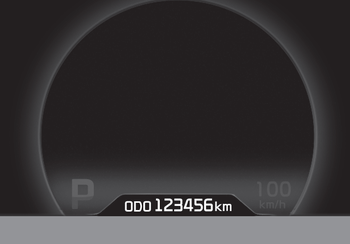

■ Type A

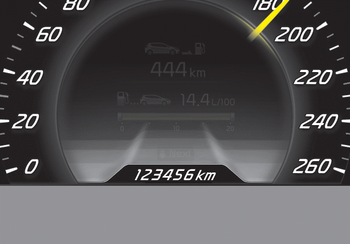

■ Type B
The odometer indicates the total distance the vehicle has been driven.
You will also find the odometer useful to determine when periodic maintenance should be performed.
