Kia Cee'd: IMS (Integrated Memory) / IMS Control Switch Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / IMS (Integrated Memory) / IMS Control Switch Schematic diagrams

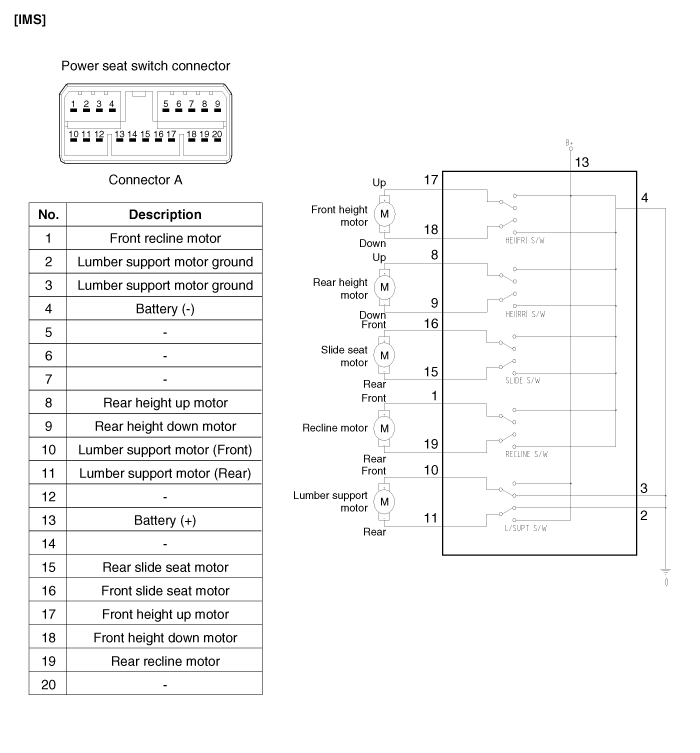

Circuit diagram

IMS Power Seat Control Repair procedures

Inspection 1. Disconnect the IMS control switch connector. 2. With the power IMS control switch in each position, make sure that ...

IMS Control Switch Repair procedures

Inspection 1. Remove the IMS control switch connector (A). 2. With the IMS control switch in each position, make sure that conti ...
