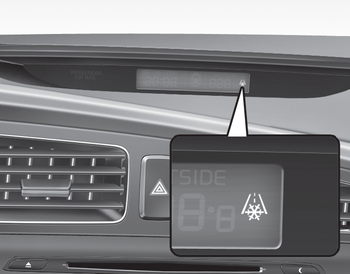

Kia Cee'd: LCD display warnings and indicators (instrument panel display) / Icy road warning light
This warning light is to warn the driver the road may be icy when:
- Ignition ON
- Temperature range: approximately below 4°C (39.2°F).
The warning light will blink for 10 seconds and then illuminate. Also, the warning chime will sound.
✽ NOTICE
If the icy road warning light appears while driving, you should drive more attentively and safely refraining from over-speeding, rapid acceleration, sudden braking or sharp turning, etc.
