Description
"The heated steering wheel features an internal heating element that maintains the steering wheel temperature to a consistent level during cold seasons. A heater element has been integrated into the steering handle to maximize driver comfort during cold seasons. The steering wheel heating system will not be active with an ambient temperature above the system set point temperature. The steering wheel heater element is connected through a wire harness and regulated through an electronic control module.The control module responds to a temperature sensor’s (negative temperature coefficient - NTC thermistor) resistance change, which is in direct contact with the steering wheel heater element."
Heated control unit

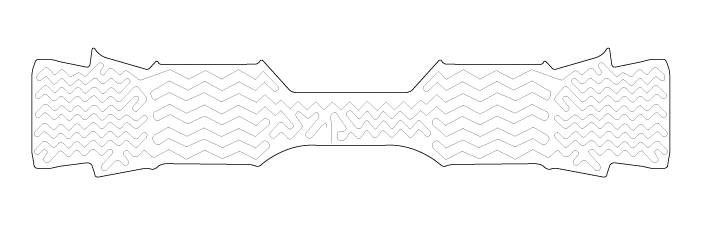

Heated pad

Specifications

Item
Specification
Voltage
13.5 V
Heated pad resistance
1.6 ~ 2.0 Ω  ± 10%
NTC resistance
10.0 kΩ  ± 10% (25°C)
Current
124A not over

Repair procedures
Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering w ...

Heated Steering wheel Schematic diagrams
System Circuit Diagram Terminal Function   Housing Pin Function Wire color Pad A ...
