Kia Cee'd: Crash Pad / Glove Box Housing Repair procedures

Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Crash Pad / Glove Box Housing Repair procedures

Replacement

•	When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Put on gloves to protect your hands.

•	Take care not to scratch the body surface.

1.	Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

2.	Disconnect the passenger air bag on/off switch connector (A).

3.	Disconnect the stopper (B) from the glove box (A).

4.	Disconnect the air damper (A) from the glove box (B).

5.	Disconnect the pins (A) and then remove the glove box (B).

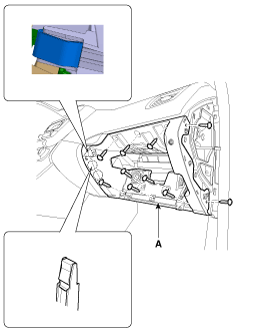

6.	After loosening the mounting screws, then remove the glove box housing (A).

7.	Disconnect the glove box lamp connector (A).

8.	Disconnect the glove box lamp switch connector (A).

Install in the reverse order of removal.

•	Make sure the connector are connected in properly.

•	Replace any damaged clips.
