Kia Cee'd: Windshield Wiper/Washer / Front Wiper Motor Components and components location

Kia Cee'd Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor Components and components location

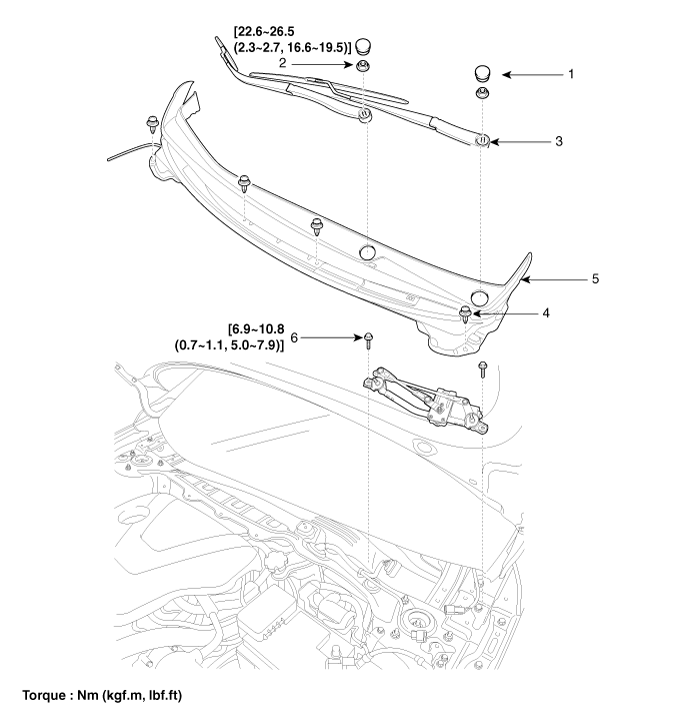

Component Location


1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly

Windshield Wiper-Washer Switch Repair procedures
Inspection Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch. Wiper Swit ...

Front Wiper Motor Repair procedures
Removal 1. Remove the cap (B) and remove the nuts, then remove the wiper arm (A). Tightening torque : 22.6 ~ 26.5 N.m(2.3 ~ ...
