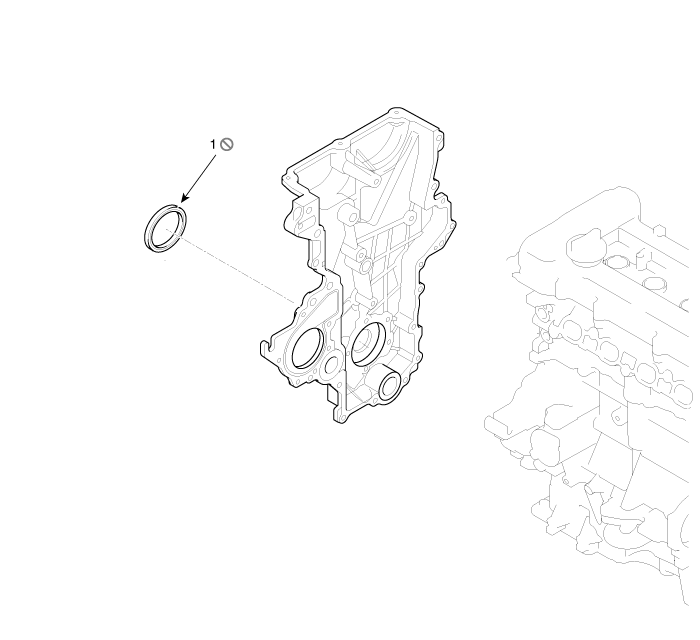

Kia Cee'd: Timing System / Front Oil Seal Components and components location



Crankshaft Damper Pulley Repair procedures

Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Dreve Belt") 2. Remove the engineroom u ...

Front Oil Seal Repair procedures

Removal and Installation 1. Crankshaft damper pulley. (Refer to Timing System - "Damper Pulley") 2. Remove the front ...
